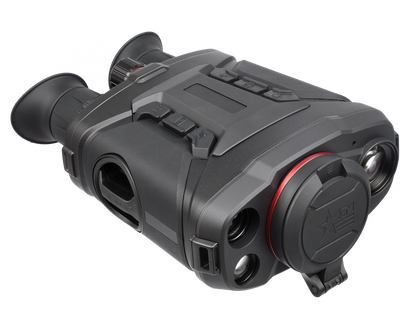

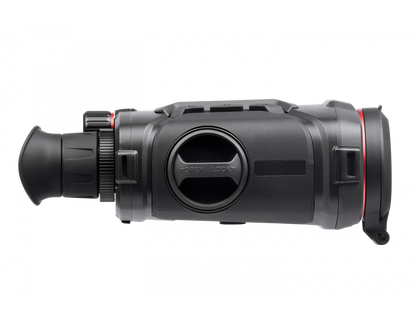

Voyage LRF TB50-384 Thermal Fusion Imaging with CMOS Binocular, Integrated Rangefinder, 12 Micron 384x288 (50Hz), 50mm Lens

The AGM Voyage TB50-384 Thermal Fusion and Digital Vision Binoculars are among the most advanced and feature-packed optical devices in the world. The main driving force behind these binoculars lies in the primary thermal viewing channel, equipped with an incredible new 12-micron thermal detector with a 384x288 resolution. This new AGM thermal sensor boasts an industry-leading sensitivity rating of less than 20mK (millikelvin). This AGM sensor ensures that not only human-sized heat signatures can be detected at distances of up to 1.6 miles (2,600 meters), but that foliage and background imagery will also appear sharp and detailed at closer ranges/fields. Unlike other thermal binoculars on the market, the Voyage is also equipped with a digital night vision channel, which is excellent for assisting with target recognition after the thermal channel has detected a potential target. The built-in 1,000-meter laser rangefinder takes the Voyage to another level, not to mention its 64GB of internal memory and Wi-Fi compatibility.

The possible applications of the Voyage fusion binoculars are nearly as limitless as their features, which include but are not limited to: high-sensitivity sub-20mK thermal detector, 50 mm germanium lens with 0.9 aperture, ultra-low-light 2560x1440 CMOS sensor, multiple viewing modes including image fusion and multiple color palettes, 5.5X base magnification with up to 16X digital zoom, picture-in-picture mode, built-in laser rangefinder, GPS module, tilt sensor, Digital Detail Enhancement (DDE), up to 8 hours of battery life using three removable rechargeable 18650 batteries, USB Type-C port for external power capability, IP67 waterproof rating, rugged carrying case included, neck strap, and of course AGM’s transferable 5-year warranty.

• Dual-spectrum fusion imaging and object highlighting (detail enhancement and target recognition)
• Selectable thermal viewing channel, visible light channel, or combined view
• Thermal resolution: 384x288
• Optical resolution: 2560×1440
• NETD less than 20 mK (25°C, F#=1.0)
• Digital Detail Enhancement (DDE)
• 3D Digital Noise Reduction (3D DNR)
• Adaptive Automatic Gain Control (AGC)
• Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0, AGC on)
• Video recording, playback, image capture, and search (event review directly on the device)
• Wi-Fi hotspot
• Eye-safe laser rangefinder (detection up to 1,000 meters with 1-meter measurement accuracy)
• GPS module
• Digital magnetic compass
• Tilt sensor
• Proximity sensor for power saving
• Up to 8 hours of continuous operation
• Waterproof, IP67
• 5-year limited warranty

Specifications

Magnification 5.5x - 88x

Interpupillary Distance 60 mm to 70 mm

Digital Zoom 1x, 2x, 4x, 8x, 16x

Detection Range 2,600 m/yd (6 ft object)*

Flat Field Correction (FFC) 905 nm (Class 1)

Palettes Optical, Thermal White Hot, Thermal Black Hot, Thermal Red Hot, Image Fusion

Diopter Adjustment -5 to +3 dpt

Battery Type Three 18650 batteries

Image Sensor Uncooled Vanadium Oxide Focal Plane Array

Resolution 384×288

Pixel Size 12 μm

Spectral Response Band 8 μm to 14 μm

NETD Less than 20 mK (25°C, F#=1.0)

Field of View 5.3° × 4.0°

Aperture F0.9

Lens (Focal Length) Less than 20 mK (25°C, F#=1.0)

Display 0.39 inch, OLED, 1024×768

Storage Internal memory module (64 GB)

Image Capture JPEG, 1600x1200

Battery Runtime Up to 8 hours

Battery Capacity Display Yes

Protection Level IP67

Mount 1/4”-20 UNC

Cable Output USB Type-C Port

Accessories (Included) Battery Charger, Power Cable, Lens Cleaning Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case

Dimensions 217 × 155 × 87 mm (8.5 × 6.1 × 3.5 inches)

Weight 1.12 kg (2.5 lbs)

Storage Temperature Range -40°C to 70°C (-40°F to 158°F)

Picture-in-Picture (PIP) Mode Yes

Video Recording MP4, 1600x1200

Laser Rangefinder Measurement Distance Max. 1,000 m

Laser Wavelength 905 nm (Class 1)

Eye Relief 15 mm

External Power Supply DC 5V/2A, Max. 10W, Type-C Port
