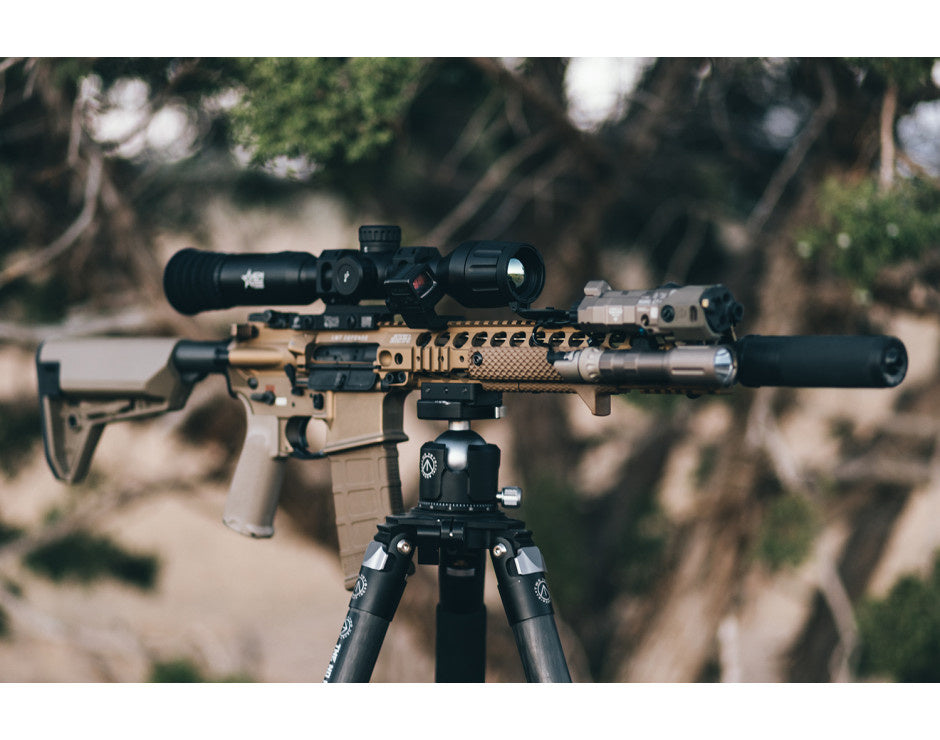

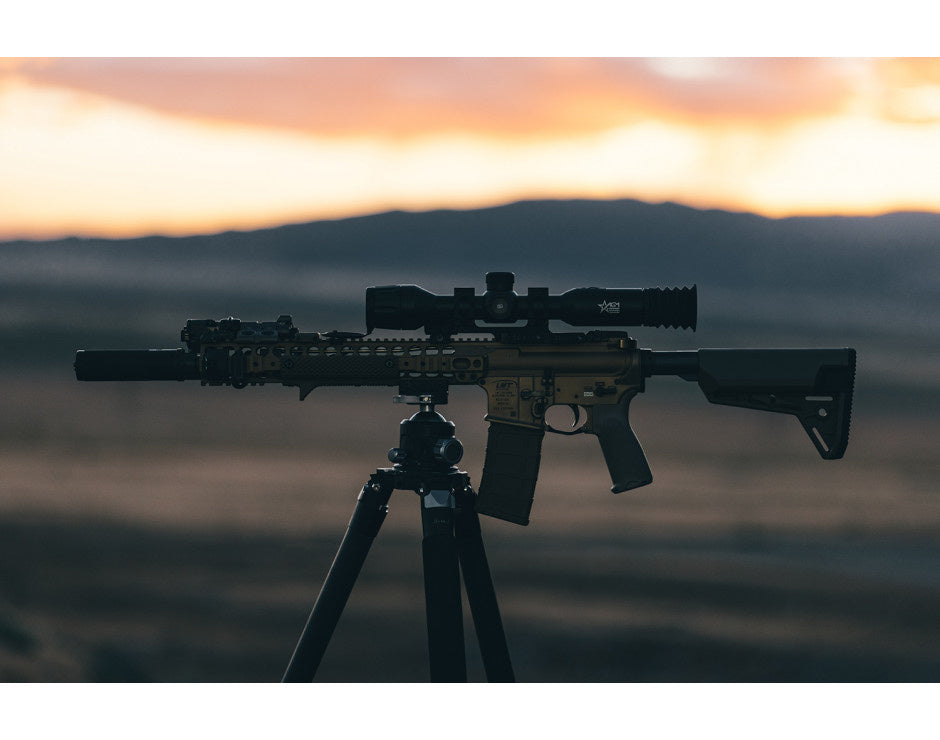

Adder TS35-384 – 12 Micron Thermal Optic, 384x288 (50 Hz), 35mm Lens

AGM Adder thermal scopes pack all advanced technology and electronics into the familiar 30 mm scope tube housing. The Adder TS35-384 model combines a 35 mm Germanium lens with an enhanced 384x288 thermal detector and a 1024x768 OLED display, delivering one of the best images AGM has produced to date. The combination of the 12-micron sensor with the 35 mm lens also increases the base magnification of this particular model to 3X. Unlike smaller lenses with larger micron sensors, this combination allows predator hunters to start with a higher base magnification, eliminating the inevitable resolution degradation required for low-magnification units. Additional improvements include an impressive 15-hour battery life with two built-in rechargeable 18650 batteries, 5 internal reticle options, and Shot Activated Recording (SAR), ensuring that forgetting to press the record button becomes a thing of the past when enabled.

The entire Adder product family also includes a high-quality one-piece 30 mm quick-detach mount from American Defense Manufacturing. These mounts allow the optic to slide forward and backward to provide optimal eye relief for shooters using a wide variety of shooting platforms. Additional features include, but are not limited to: a 50 Hz refresh rate, IP67 waterproof rating, external power capability, 64 GB of internal memory, 5 different reticle options, Wi-Fi compatibility with the AGM Connect app, multiple color palettes, audio recording, emergency power supply with a CR123 battery, and of course, AGM’s 5-Year Transferable Warranty.

• Thermal Resolution: 384×288
• High Sensitivity Detector: 12μm
• Fast 50 Hz Imaging
• High-Resolution OLED Display
• Digital Zoom: 1x, 2x, 4x, 8x
• Built-in Video and Audio Recording
• Shot Activated Recording (SAR)
• Wi-Fi Data Transmission
• Built-in 64GB EMMC High-Speed Storage
• Multiple Reticle Types and Colors
• Adjustable Color Palettes
• Standby Mode
• Waterproof and Shockproof
• Dual Power System
• Up to 15 Hours of Continuous Operation
• External Power Supply Capability
• 5-Year Warranty

Specifications:

• Magnification: 3× - 24×

• Palettes: White Hot, Black Hot, Red Hot, Fusion

• Reticle: 5 types, 4 colors, on/off

• Bore Sight Adjustment: Digitally Controlled

• Adjustment Increment: 0.13 mil / 0.44 MOA

• Range Measurement: Yes (Stadiametric)

• Scene Mode: Jungle, Recognition

• Picture-in-Picture (PIP) Mode: Yes

• Video Recording: Yes

• Defective Pixel Correction (DPC): Yes

• Uniformity Correction: Automatic, Manual, External Correction

• Digital Magnification: Not specified

• Detector Type: 12μm, Uncooled, 50 Hz, < 35 mK (25°C, F# = 1.0)

• Standby Mode: Yes

• Resolution: 384 × 288

• Detection Range (6' object): 1800 m/yd

• Image Capture: Yes

• Lens System: 35 mm; F/1.0

• Field of View (H × V): 7.5° × 5.6°

• Digital Zoom: 1×, 2×, 4×, 8×

• Diopter Adjustment Range: -5 to +5 dpt

• Eye Relief: ≥ 60 mm

• Display: 1024×768, 50 Hz, OLED

• Storage: 64 GB EMMC

• Battery Type: Two Built-in Rechargeable 18650 Batteries and One CR123 Battery

• Wi-Fi: Yes

• CVBS Output: Yes (via USB)

• Battery Life (Operating): Up to 15 hours

• Power Supply: 5 VDC/2 A, USB Type-C Compatible with QC3.0

• Operating Temperature Range: -30°C to +55°C (-22°F to +131°F)

• Protection Rating: IP67

• Weight: 890 g (1.96 lb)

• Overall Dimensions: 407 × 78 × 76 mm (16.0 × 3.1 × 3.0 in)
