AGM-3142551305FM31

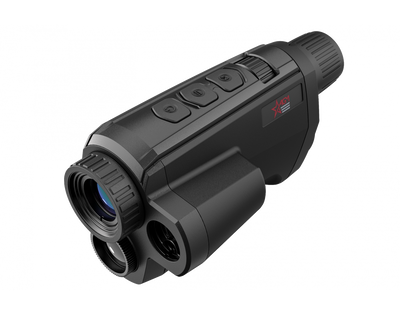

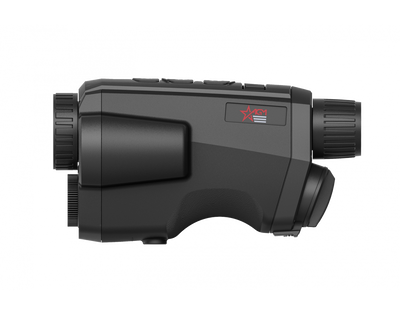

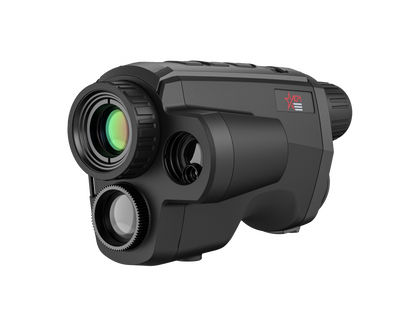

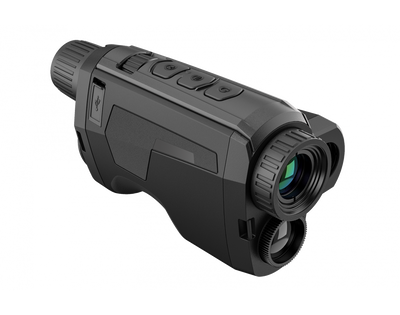

Fuzion LRF TM35-640 - Thermische Beeldvorming & CMOS-fusie Monoculair met Laserafstandsmeter, 640x512 (50Hz), 35mm Lens
Pairs well with
De AGM Fuzion LRF TM35-640 thermische en digitale dag/nachtzicht monocular is een van de technologisch meest geavanceerde en functierijke optische apparaten ter wereld. De belangrijkste motor achter deze monocular is het primaire thermische kijkkanaal, uitgerust met een hooggevoelige 12-micron thermische detector met een resolutie van 640x512 pixels. Deze AGM-sensor zorgt ervoor dat niet alleen mensgrote warmtesignaturen op afstanden tot 1 mijl (1.750 meter) kunnen worden gedetecteerd, maar ook dat bladeren en achtergronddetails scherp en gedetailleerd blijven op kortere afstanden/velden. In tegenstelling tot andere thermische monoculars op de markt is de Fuzion LRF ook uitgerust met een digitaal nachtzichtkanaal, dat uitstekend is voor het helpen bij het herkennen van doelwitten die door het thermische kanaal zijn gedetecteerd. De ingebouwde laserafstandsmeter van 600 meter tilt de Fuzion LRF naar een ander niveau, om maar te zwijgen van de 16GB intern geheugen en Wi-Fi-compatibiliteit.
De Fuzion LRF wordt ook geleverd met talrijke softwareverbeteringen en vele functies die standaard zijn geworden binnen het thermische productassortiment van AGM: hooggevoelige thermische detector, 35 mm germaniumlens met een aperture van 1.0, ultra-low-light 1920x1080 CMOS-sensor, meerdere kijkmodi waaronder beeldfusie en meerdere kleurenpaletten, 2X basisvergroot met 8X digitale zoom, picture-in-picture-modus, ingebouwde laserafstandsmeter, tot 5 uur accuduur met een oplaadbare en verwijderbare 18650-accu, USB Type-C-poort voor externe stroomvoorziening en IP67 waterdichtheidsclassificatie. Het pakket bevat een IR-illuminator voor lange afstand, polsbandje, lader en natuurlijk de overdraagbare 5-jarige garantie van AGM.
- Dubbel spectrum beeldfusie en objectmarkering
- Detailverbetering en doelwitsherkenning
- Selecteerbaar thermisch kijkkanaal, zichtbaar lichtkanaal of gecombineerde modus
- 12 μm hooggevoelige thermische detector met 35 mK NETD
- Snelle 50Hz beeldvorming
- Digitale zoom 1x, 2x, 4x, 8x
- Digitale beeldverwerkingstechnologie
- Lichtzwak optisch kanaal
- 1920×1080 optische resolutie
- Oogveilige laserafstandsmeter
- 1024×768 resolutie, 0,39 inch OLED-scherm
- Videoregistratie en beeldvastlegging, ingebouwd 16 GB EMMC
- Wi-Fi-hotspot
- Standbymodus
- Tot 5 uur continue werking
- Waterdicht
- 5 jaar garantie
Specificaties
Paletten White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion
Bedrijfstemperatuur -20°C tot 55°C (-4°F tot 131°F)
Afmetingen (LxBxH) 168 × 87 × 74 mm (6,6 × 3,4 × 2,9 inch)
Afstandsmeting Ja (Laserafstandsmeter: tot 600 m, ±1 m nauwkeurigheid)
Scènemodus Jungle, Herkenning
Hot Spot Ja
Detectiebereik 1.750 meter
Detectortype 12 μm ongekoelde VOx Brandvlakarray
Spectrale responsband 8 μm tot 14 μm
Optische beeldsensor 1/2" Progressieve Scan CMOS, 1920×1080 bij 25fps
FFC (Vlakveldcorrectie) Automatisch, Handmatig, Externe correctie
Hogste temperatuur puntvolging Ja
Standbymodus Ja
Vernieuwingsfrequentie 50 Hz
Aperture F1.0
Resolutie 640 × 512
Laser golflengte 905 nm
Optische vergroting 2x – 16x
Lens (brandpuntsafstand) Thermische lens - 25mm, Optische module lens - 22mm
Voeding 5 VDC/2 A, USB Type-C interface compatibel met externe stroomvoorziening
Gezichtsveld (H × V) 12,5° × 10°
Digitale zoom 1x, 2x, 4x, 8x
Scherm 1024x768, 0,39 inch OLED, 50Hz
Opslag Ingebouwd 16 GB EMMC
Videoregistratie Onboard videoregistratie
Snapshotaanmaak Ja
Accutype Eén 18650 oplaadbare lithium-accu (verwijderbaar)
CVBS-uitgang Ja (via USB)
Accuduur Tot 5 uur continue werking (@25°C, WiFi en CVBS uit) Tot 3 uur continue werking (@25°C, WiFi en CVBS aan)
Accucapaciteitsindicator Ja
Gewicht 520 g (1,15 lb)
Beschermingsniveau IP67 (waterdicht)
