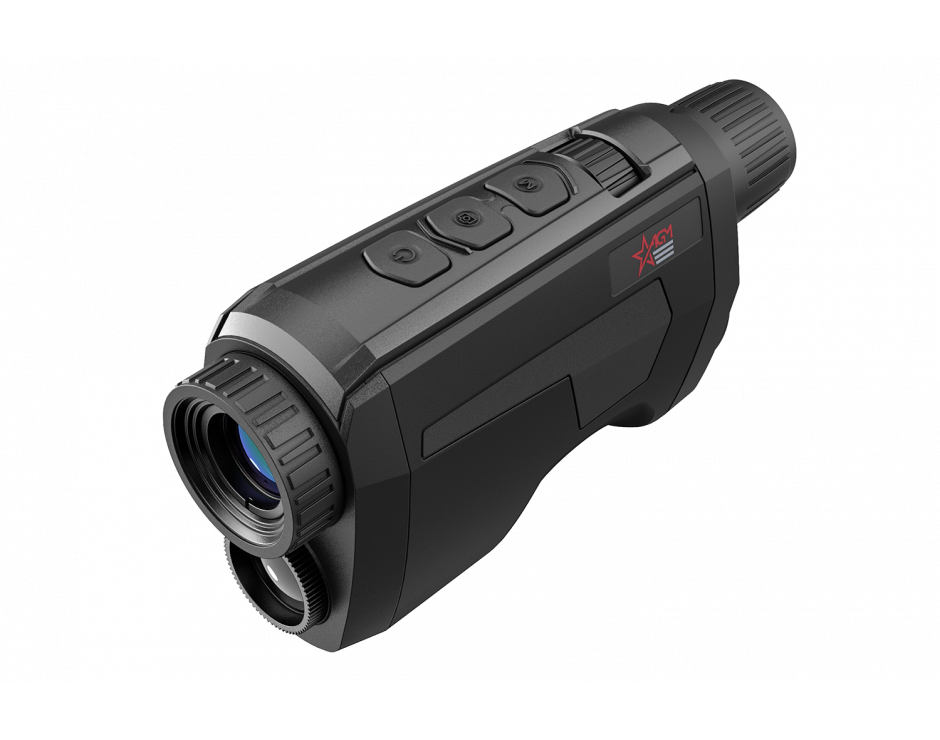

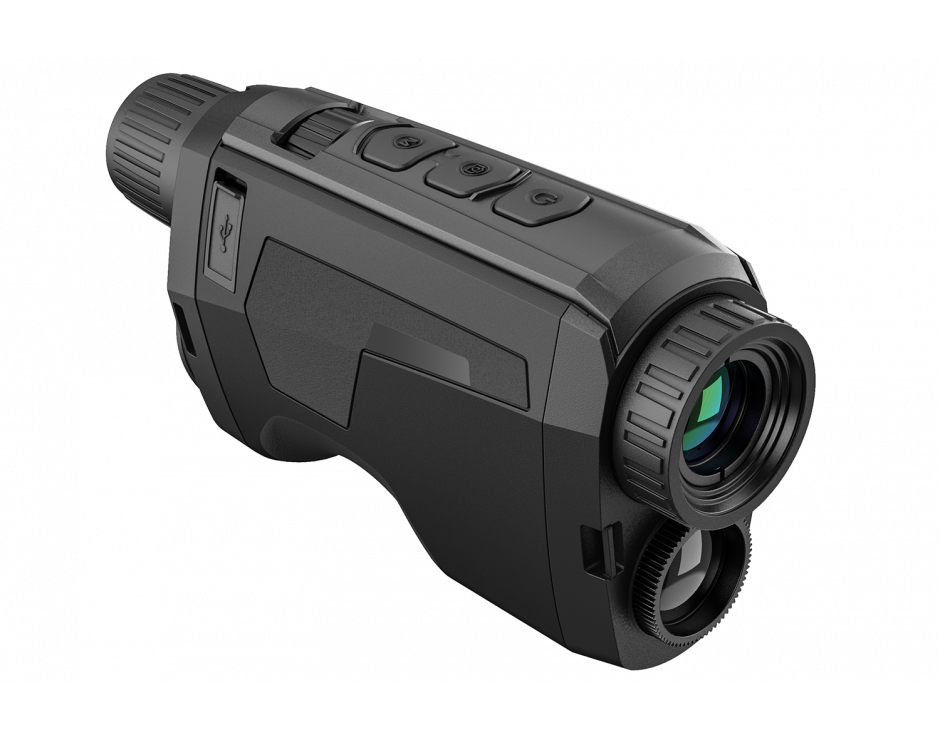

Fuzion TM35-640 - Thermal Fusion Imaging and CMOS Monocular 12 Micron, 640x512 (50Hz), 35mm Lens

The AGM Fuzion Bi-Spectrum Thermal and Optical Monocular is equipped with a high-sensitivity 12 μm thermal detector, an ultra-low light optical detector, a 1024×768 OLED display, and an eyepiece with a wide field of view. The device can quickly detect hidden objects even in extreme environments such as smoke, fog, rain, snow, etc. It can be widely used in scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Thanks to its waterproof capability, the device performs well even in harsh weather conditions and challenging environments.

The Fuzion’s user-friendly interface and comfortable, ergonomic controls make operation and application incredibly simple. The monocular offers three different image display modes: thermal, visible light, and fusion, which can be easily adapted to different environmental conditions. The Fuzion uses a rechargeable 18650 lithium battery for up to 5 hours of operating time. Additionally, an external power supply can be used to extend operating time.

• Bi-spectrum image fusion and object highlighting
• Detail enhancement and target recognition
• Selection of thermal channel, visible light channel, or combined display
• High-sensitivity 12 μm thermal detector, 35 mK NETD
• Fast 50 Hz imaging
• 1x, 2x, 4x, 8x digital zoom
• Digital image processing technology
• Ultra-low illumination optical channel
• 1920×1080 optical resolution
• 1024×768 OLED display, 0.39 inch
• Video recording and snapshot capture, built-in 16 GB EMMC
• Wi-Fi hotspot
• Standby mode
• Up to 5 hours of continuous operation
• Waterproof
• 3-year limited warranty

SPECIFICATIONS

Optical Sensor Wavelength 400–1000 nm

Palettes White Hot, Black Hot, Red Hot, Fusion, Visible, Image Fusion

Scene Mode Jungle, Recognition

Hot Spot Yes

Observation Distance 1750 m/yd

Detector Type 12 μm VOx Uncooled Focal Plane Arrays

Image Sensor 1/2" Progressive Scan CMOS, 1920×1080 at 25fps

Spectral Response Band 8 μm to 14 μm

FFC (Flat Field Correction) Automatic, Manual, External Correction

Highest Temperature Spot Tracking Yes

Standby Mode Yes

Refresh Rate 50 Hz

Aperture F1.0

Resolution 640 × 512

Optical Magnification 2x – 16x

Lens (Focal Length) Optical Module Lens Focal Length - 22mm Thermal Lens Focal Length - 35mm

Power 5 VDC/2 A, USB Type-C Interface Compatible with External Power Supply

Field of View (H × V) 12.5° × 10°

Digital Zoom 1x, 2x, 4x, 8x

Display 1024x768, 0.39-inch OLED Display, 50Hz

Storage Built-in 16 GB EMMC

Video Recording Onboard Video Recording

Snapshot Capture Yes

Battery Type One Rechargeable 18650 Lithium Battery (Removable)

CVBS Output Yes (via USB)

Battery Operating Time Up to 5 hours of continuous operation (@25°C, WiFi and CVBS off) Up to 3 hours of continuous operation (@25°C, WiFi and CVBS on)

Battery Capacity Indicator Yes

Operating Temperature Range -20°C to 55°C (-4°F to 131°F)

Weight 480 g (1.06 lb)

Overall Dimensions 168 × 87 × 51 mm (6.6 × 3.4 × 2.0 inches)

Protection Level IP67 (Waterproof)
