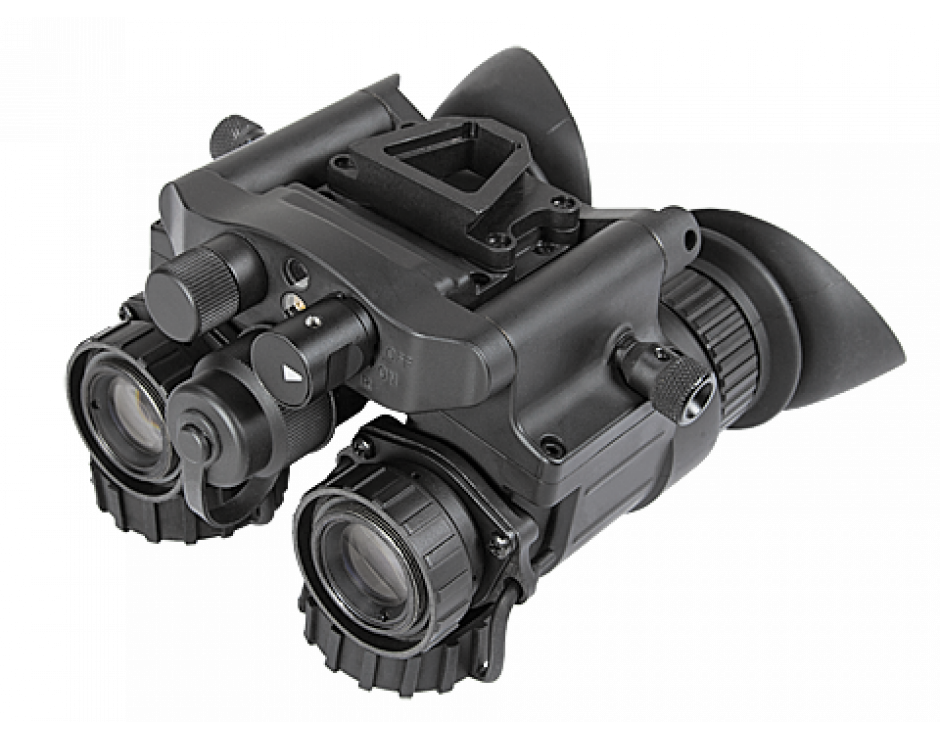

NVG-50 NL1 – Dual Tube Night Vision Binoculars/Goggles 51° FOV with Gen 2+ "Level 1", P43 Green Phosphor IIT

The AGM NVG-50 is a dual-channel night vision system. The NVG-50 uses optics that provide a wider 51° field of view, at the expense of reduced eye relief. The NVG is built with a compact composite housing for increased durability and features advanced multi-coated optics. The device can be equipped with a high-performance Gen 2+ or Gen 3 Image Intensifier Tube (IIT). The bright light cut-off function ensures protection of the high-quality photocathode tube. The NVG is also equipped with Manual Gain Control, which adjusts image brightness, providing maximum image quality even in changing light conditions. It operates on a single AA alkaline battery or a CR123A battery and can run for up to 20 hours. It is also equipped with an integrated infrared illuminator for reading in the dark.

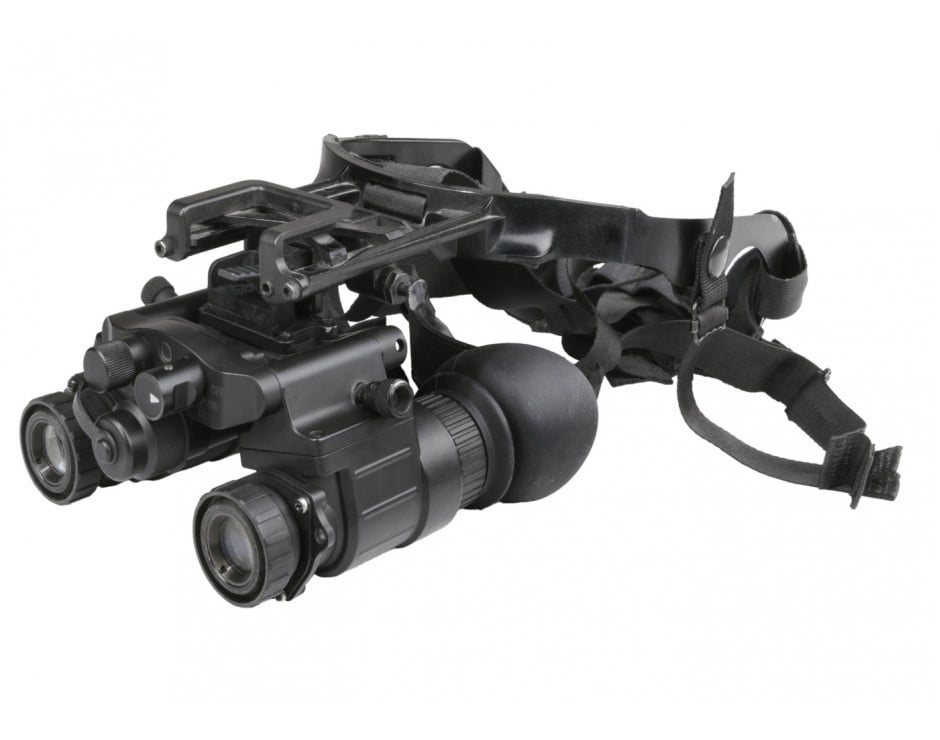

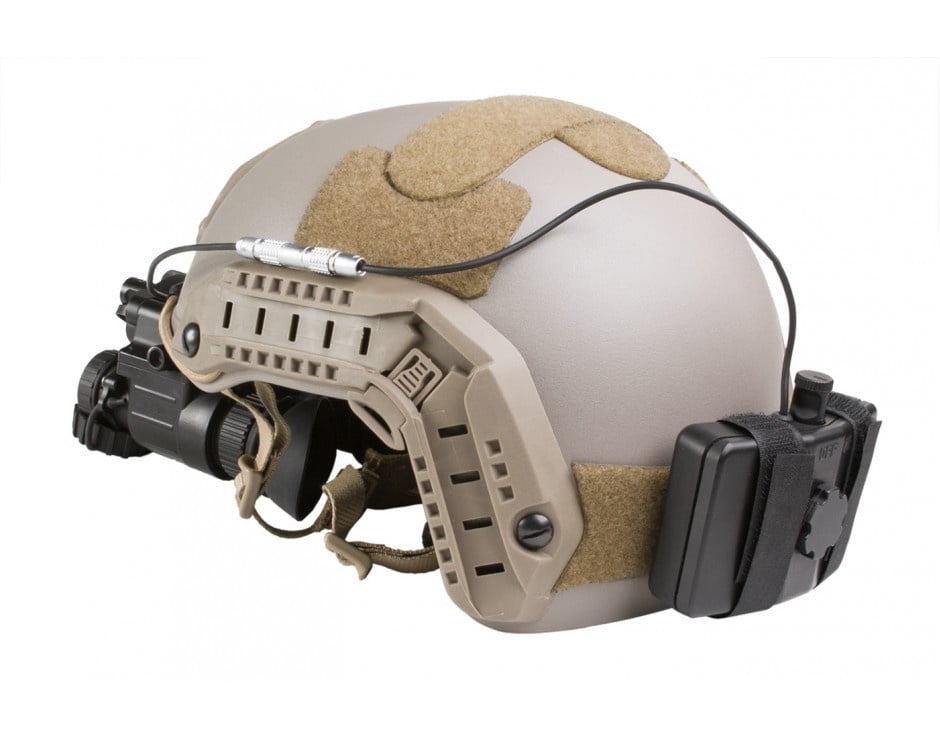

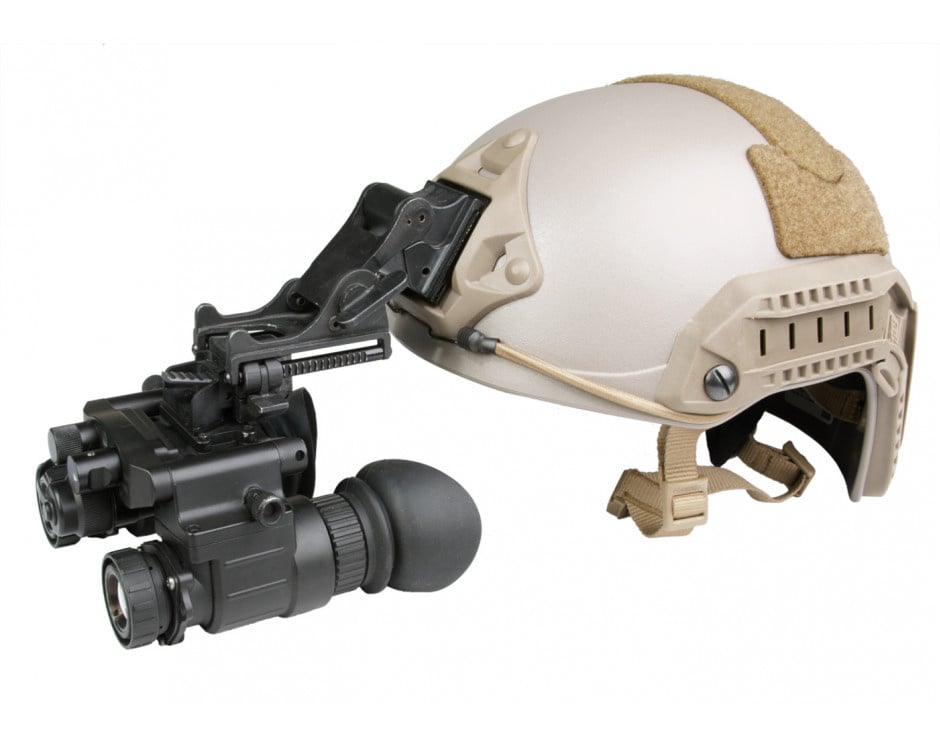

For hands-free use, the NVG can be mounted on various brackets, such as AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or on mounts with a mini rail interface.

Features:

• Redundant dual tube design
• True stereoscopic vision
• Wide 51° field of view
• Lightweight and compact
• Head or helmet mount for hands-free operation
• Bright light cut-off function
• Ergonomic, simple, and easy-to-use controls
• Integrated infrared illuminator and flood lens
• Uses a single CR123A lithium or AA battery
• 3-year warranty

SPECIFICATIONS:

• Image Intensifier Tube: Gen 2+ "Level 1"
• Resolution: 51–64 lp/mm
• Field of view cleanliness by zone: NL1 Gen 2 IIT offered by AGM. Virtually no visible spots in Zone 1.
• Magnification: 1x (optional 3x)
• Lens system: 19 mm; F/1.26
• Field of view: 51°
• Focus range: 0.25 m to infinity
• Eye relief: 17 mm
• Diopter adjustment: -6 to +2 dpt
• LED indicators: Low battery; IR on; Excessive light conditions
• Infrared illuminator: Yes
• Manual gain control: Yes
• Bright light cut-off function: Yes
• Automatic shut-off system: Yes
• Battery type: One CR123A (3V) or AA (1.5V)
• Battery life (operating): Up to 20 hours at 20°C (up to 80 hours with optional battery pack)
• Operating temperature range: -40°C to +50°C (-40°F to +122°F)
• Storage temperature range: -50°C to +50°C (-58°F to +122°F)
• Weight: 615 g (1.35 lbs)
• Overall dimensions: 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 inches)
