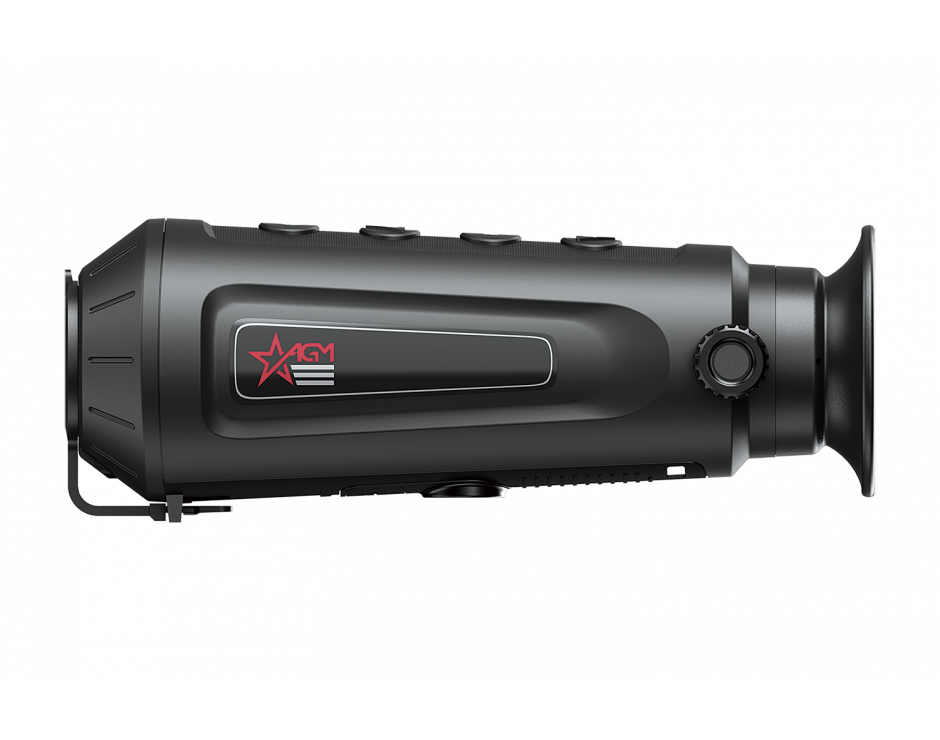

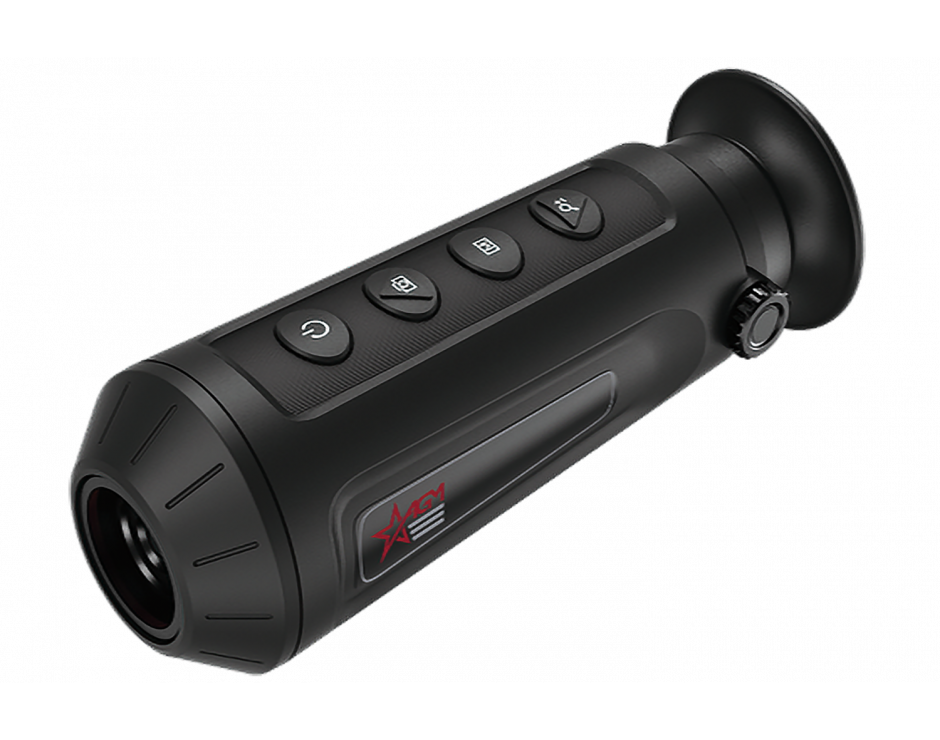

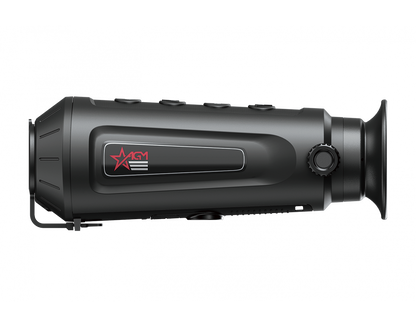

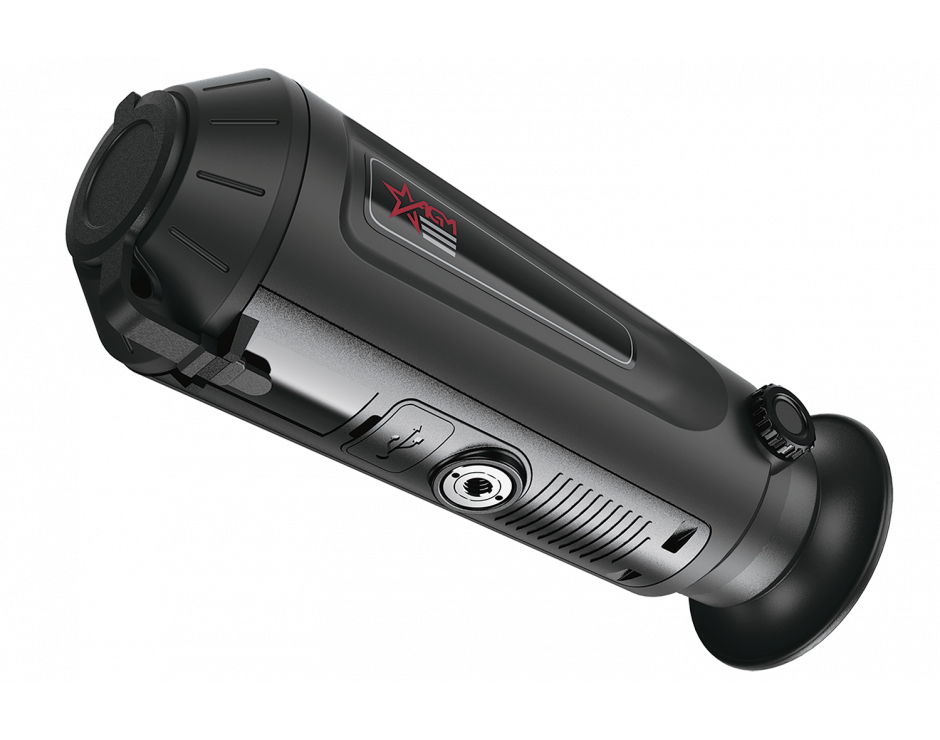

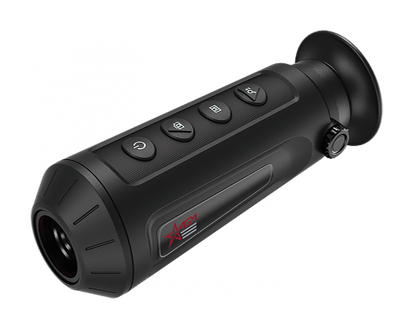

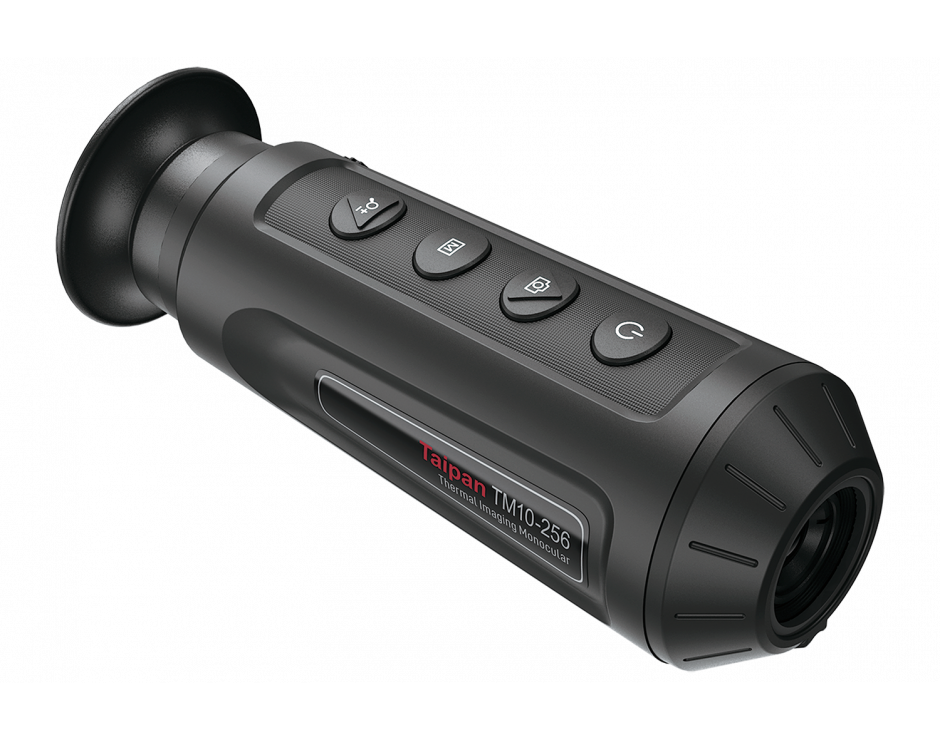

Taipan TM10-256 – 12 Micron 256x192 Thermal Monocular (50 Hz)

The AGM Taipan TM10-256 thermal monocular has become synonymous with two words: Reliability and Simplicity. The Taipan TM10-256 is an excellent mid-level thermal monocular for anyone looking to experience the capabilities of thermal imaging. Equipped with a highly advanced 12-micron 256x192 resolution thermal sensor and a 720x540 LCOS display, it is an excellent tool for hunters, campers, and outdoor enthusiasts who want or need to detect the presence of animals or people in complete darkness. Its uses include blood tracking for hunters to aid in game recovery, enhancing safety and awareness for hikers and campers, and general nighttime observation. The Taipan TM10-256 also comes equipped with many of the most popular software features experienced thermal users expect: up to 8 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot, AGM Connect app compatibility for exporting and sharing images and videos, 1–8X magnification, 8GB of internal storage with no memory card required, and a transferable 3-year warranty.

FUNCTIONS:

Distance Measurement: The device performs distance measurement after marking the top and bottom of the target and entering the target height.

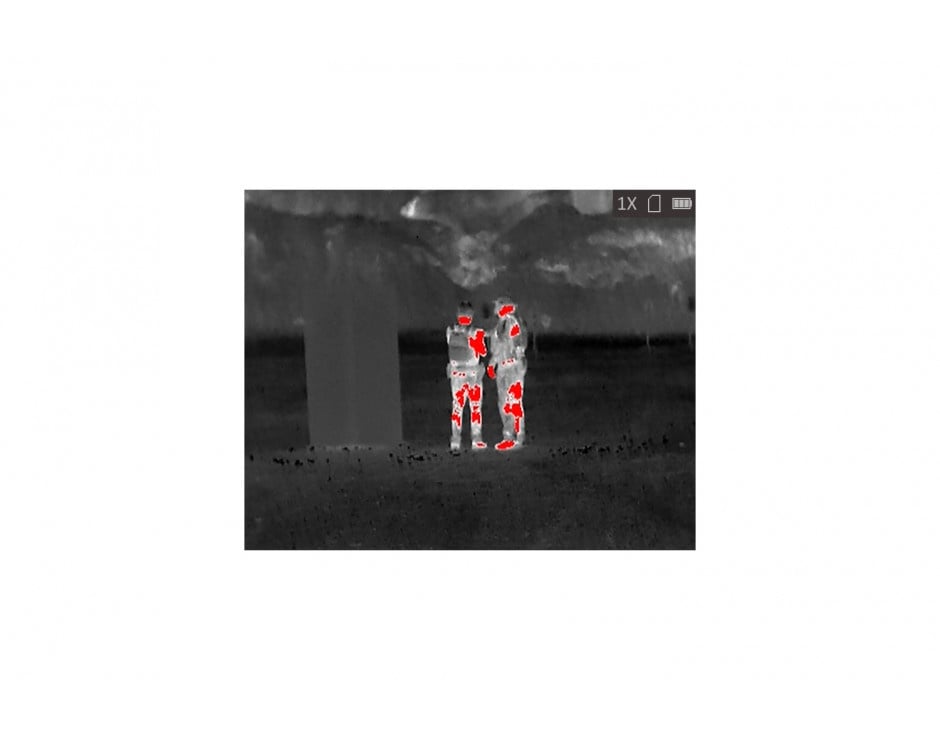

Hot Spot Marker: The device detects and marks the hottest temperature spot.

Mode Switching: The device supports palette switching and distance measurement.

Storage: The built-in memory module supports video recording and snapshot capture.

Digital Zoom: The device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot: The device can capture snapshots, record videos, and configure parameters through the app after connecting to your phone.

256x192 Resolution, 12-micron high-sensitivity detector Adaptive AGC, DDE, 3D DNR 720x540 resolution LCOS display Built-in rechargeable lithium battery Up to 8 hours of continuous operation (with Wi-Fi hotspot function disabled) "Auto Power Off" and "Sleep" modes Wi-Fi hotspot Type-C interface 3-year warranty SPECIFICATIONS

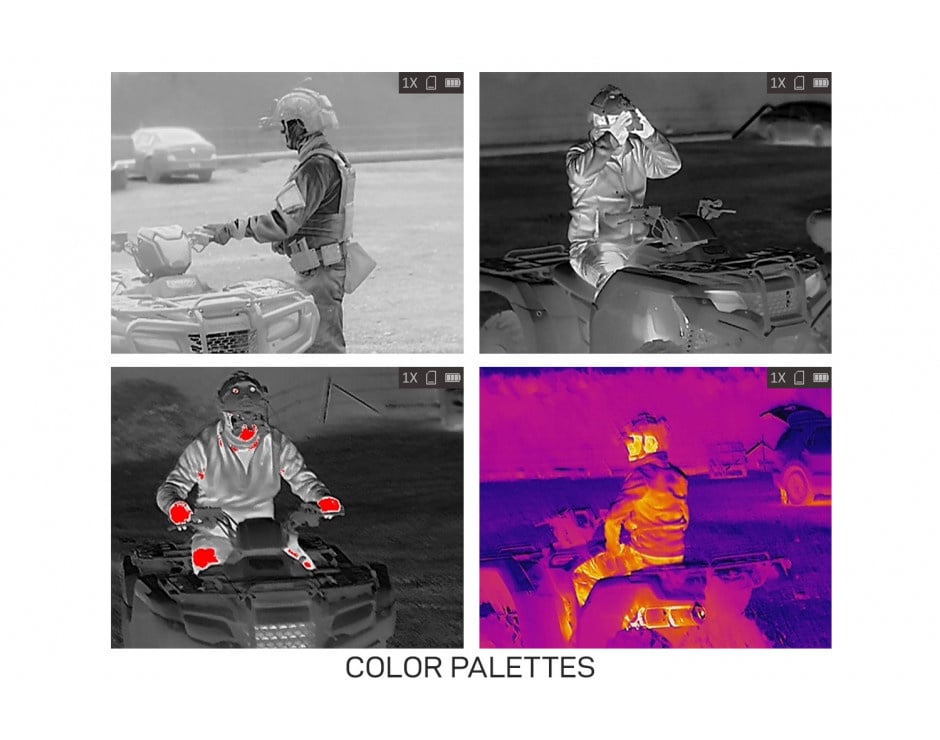

Palettes Black Hot, White Hot, Red Hot, Fusion

Operating Temperature -20°C to 55°C (-4°F to 131°F)

USB Interface Type-C

Pixel Pitch 12 microns

Multilingual Menu Yes

Drop Test Height 1.5 m (4.9 ft)

Magnification 1x - 8x

Detector Type Uncooled vanadium oxide focal plane array

Response Wavelength 8μm to 14μm

FFC (Flat Field Correction) Automatic, Manual, External Correction

Highest Temperature Spot Tracking Yes

Standby Mode Yes

Sensor Refresh Rate 25 Hz / OLED 50 Hz

Aperture F1.0

Resolution 256x192

Detection Range (6 ft object) 460 m/yd

NETD Less than 35 mk (@25°C), F#=1.0

Lens (focal length) 10 mm

Power 5 VDC/2 A, 1.5 W

Field of View (H × V) 18.00° × 13.55°

Digital Zoom 1x, 2x, 4x, 8x

Display 720x540, 0.2 inch, LCOS

Storage Built-in memory module (8 GB)

Video Recording Onboard video recording

Snapshot Capture Yes

Battery Type Built-in rechargeable lithium battery

Wi-Fi Yes

CVBS Output Yes (via USB)

Battery Life Up to 8 hours of continuous operation (with Wi-Fi hotspot function disabled)

Battery Capacity Yes

Weight 260 g (0.57 lb)

Overall Dimensions 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 inches)

Protection Level IP67

Magnification 1x
