Kraken TDC Modular Hop-Up Chamber AAP-01 (Ultimate Kit) - Green

When building your dream AAP-01 setup, you want something compatible with your configuration. Don’t worry, the Stalker Kraken AAP-01 has you covered. This Swiss army knife for your AAP-01 can adapt to all types of STALKER TDC upgrades to perfectly match your dream build.

The Kraken AAP-01 TDC hop-up chamber is probably the most versatile TDC hop-up chamber on the market. There are two different versions of this hop-up: the standard version and this Ultimate version.

This Ultimate version can be used as a simple low-profile TDC set screw unit with the included top cap adjustment screw that can be adjusted using a hex key, or you can combine it with our STALKER Low Profile AAP-01 TDC Mini Kit (included in this Ultimate set) to adjust the hop using a click wheel. You can also combine it with the STALKER TDC Rail Kits (sold separately), positioning the wheel between the Stalker rail kits so your hop can be easily adjusted on the fly.

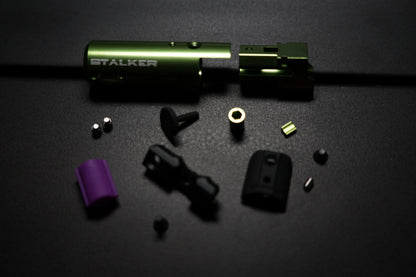

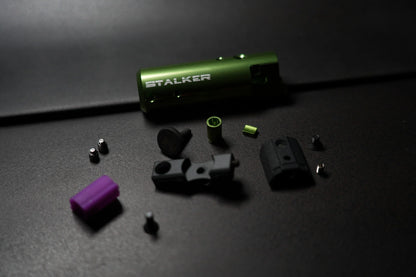

What is included in this Ultimate Kraken AAP-01 TDC Chamber package?

This colored version is made of aluminum.

• 1x Kraken 60° U-Hop AAP-01 specific bucking (Info here) for stock nozzle and CowCow nozzle
• 1x Kraken AAP-01 aluminum chamber head part
• 1x Kraken AAP-01 aluminum chamber body part
• 1x CNC aluminum hop plate
• 1x Chamber top cap for set screw adjustment
• 1x Top cap set screw
• 1x Flat-bottom hop adjustment screw for the top cap
• 1x Aluminum threaded connector pillar for the TDC wheel or for attaching various rail accessories
• 1x Black Stalker AAP-01 TDC mini turret base made of CNC aluminum
• 1x Screw to secure the mini kit to the AAP-01 receiver
• 1x Ball set screw to install in the TDC turret (Loctite recommended)
• 1x Black Stalker TDC hop wheel made of stainless steel (engraved STALKER logo)
• Various body screws to assemble the hop-up, inner barrel, and top cap

*The inner barrel and slide, spider clamps, RMR rail mounts, and the airsoft gun shown in the last two photos are for demonstration purposes only and are not included.

(((( MORE INSTALLATION VIDEOS COMING SOON ))))

Features:

• Built-in drilling tool integrated into the body
• Increases range
• Improves accuracy
• Enhances BB flight trajectory
• Adds hop adjustment function via Allen/hex key from the top of your AAP-01 or surface-mounted TDC click wheel function using the supplied wheel and TDC mini turret

Compatibility

Following the release of the hop-up unit, many accessories will be made for different upper configurations.

• Works with AAP-01 (low-profile mode and TDC mini turret mode, with all accessories except the spider clamp)
• Works with AAP-01C (low-profile mode or AAP-01C spider clamp)
• Works with AAC Black Mamba A&B kit (low-profile mode or Black Mamba spider clamp)
• Works with AAC SMG handguard + stock
• Works with CTM FUKU-2 short slide (low-profile mode or FUKU-2 spider clamp)
• Works with CTM FUKU-2 long slide (low-profile mode or FUKU-2 spider clamp)
• Works with TTI PCC kit (requires a specific Stalker Kraken AAP-01 PCC hop adjustment pin)
• Works with TTI Mini Mamba upper (low-profile mode + wheel or TTI Mamba spider clamp)
• Works with TTI Scorpion upper (low-profile mode + wheel or TTI Scorpion spider clamp)

NOTE: Stalker has made many other options if you have a different slide or AAP-01 build, so check all the options below.

If you want a TDC system for the FUKU-2 slide, click >>> HERE <<<

If you want a TDC system for the AAP-01C airsoft gun rail, click >>> Coming Soon <<<

If you want a TDC system for your Black Mamba rail, click >>> Coming Soon <<<

If you want a TDC system for the TTI PCC kit wheel, click >>> HERE <<<
