MWS Hop-Up Chamber - Kit

STALKER MWS Kraken TDC Hop-Up Chamber for Tokyo Marui and Clones

Video coming soon
Photos will be updated soon

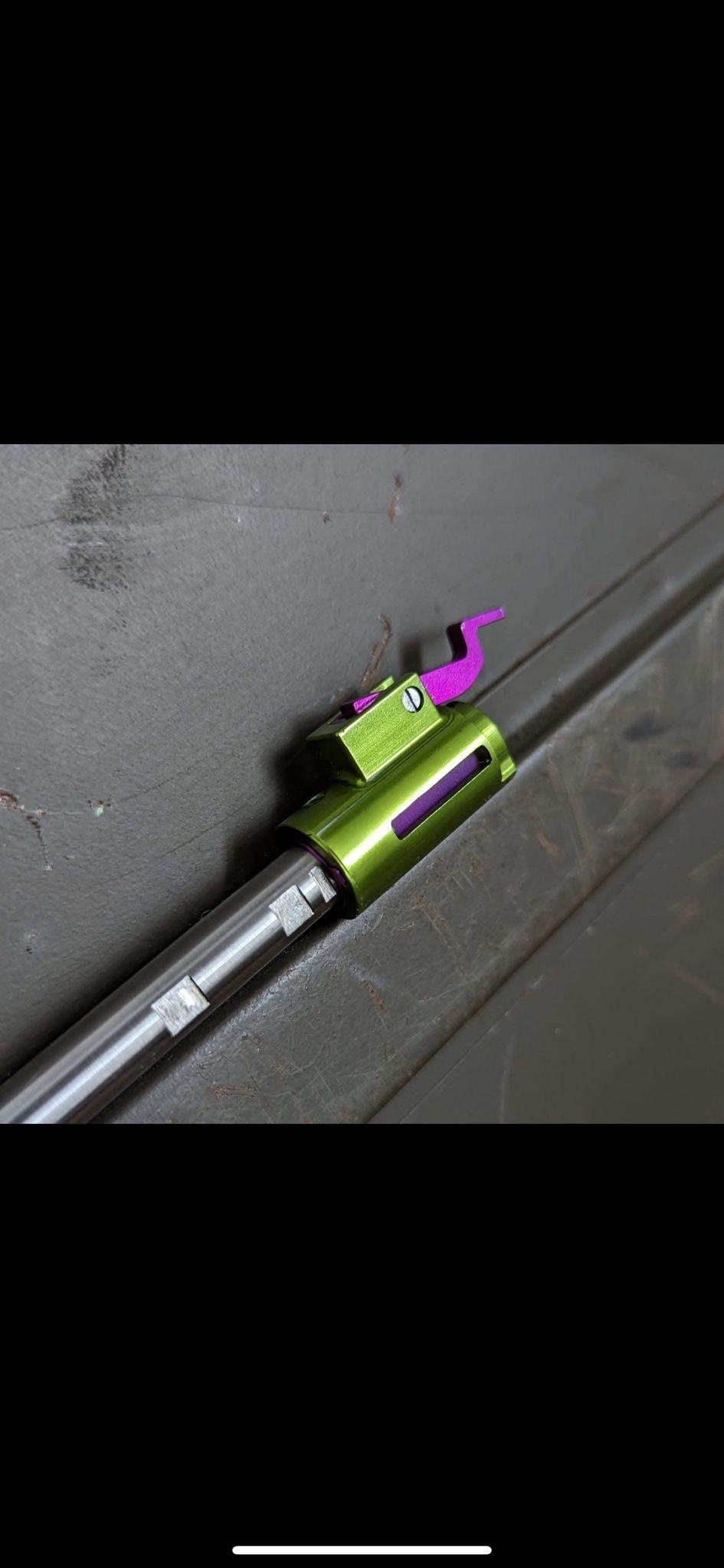

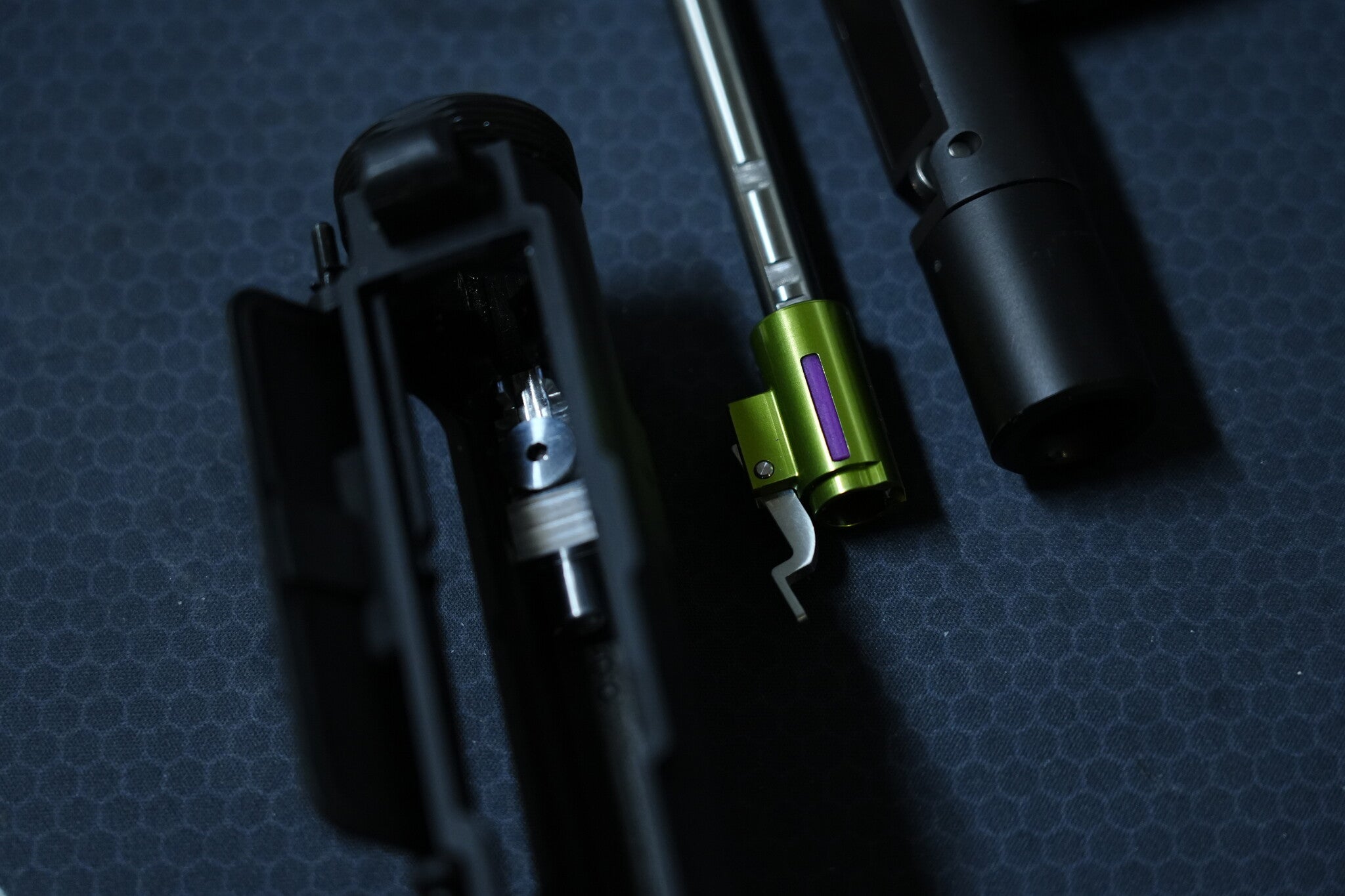

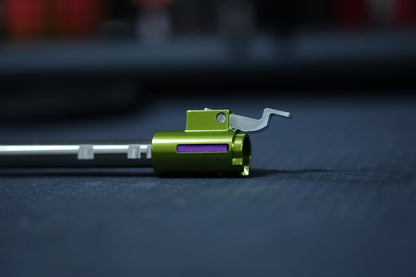

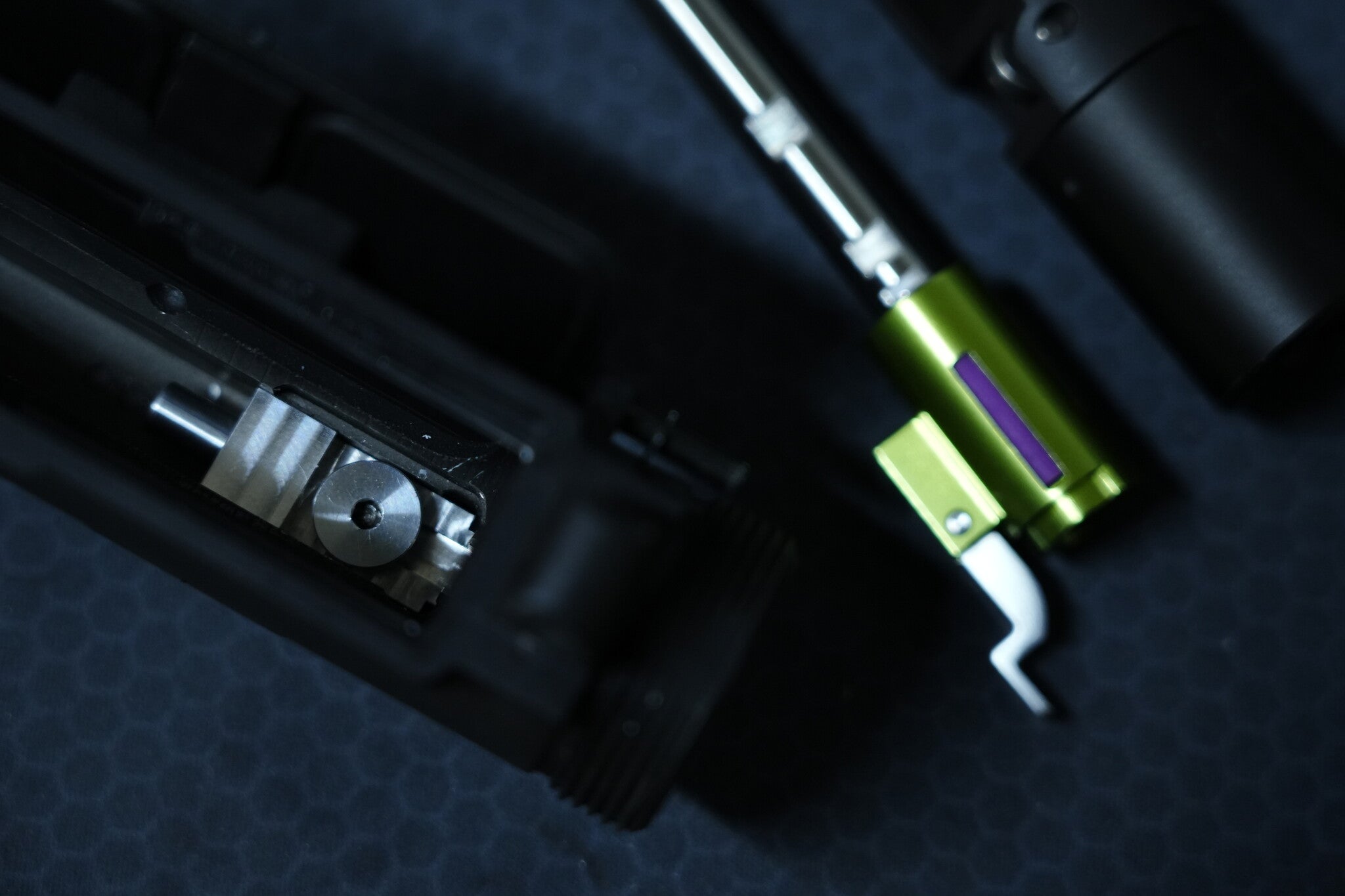

One-piece aluminum hop-up chamber featuring a high-quality stainless steel hop-up adjustment wheel, compatible with a Kraken dual-fin bucking, ensuring the bucking remains perfectly aligned inside the chamber.
The hop-up chamber can also use any other GBB bucking on the market. It includes a Stalker Dual-Fin U-Hop bucking and 4 aluminum nubs, allowing you to set up the hop-up for BBs ranging from 0.20 g to 0.48 g.

This hop-up set incorporates a stainless steel adjustment wheel with a click system, preventing the hop-up from shifting automatically due to MWS recoil.
The adjustment wheel is regulated using a HEX tool.

FIRST COMPATIBLE TDC KIT IN THE WORLD

With the Top Wheel Set, available separately for the STALKER MWS Kraken Hop-Up Kit, you can convert this chamber into a TDC chamber, allowing hop-up adjustment via a removable wheel located on the top of the MWS receiver.

Note: the TDC Top Wheel kit is not included and is sold separately.

This Kraken MWS Hop-Up Set Includes:

• 1x Stalker Kraken Aluminum Hop-Up Chamber (one-piece)

• 1x Kraken 60 Shore Dual Fin U-Hop Bucking

• 1x Inner barrel spacer with 2 small HEX screws to secure the barrel

• 1x Aluminum receiver hop wheel block

• 1x Aluminum hop-up adjustment lever

• 1x Stainless steel arm screw

• 1x Stainless steel hop-up adjustment wheel (most on the market are aluminum and wear out)

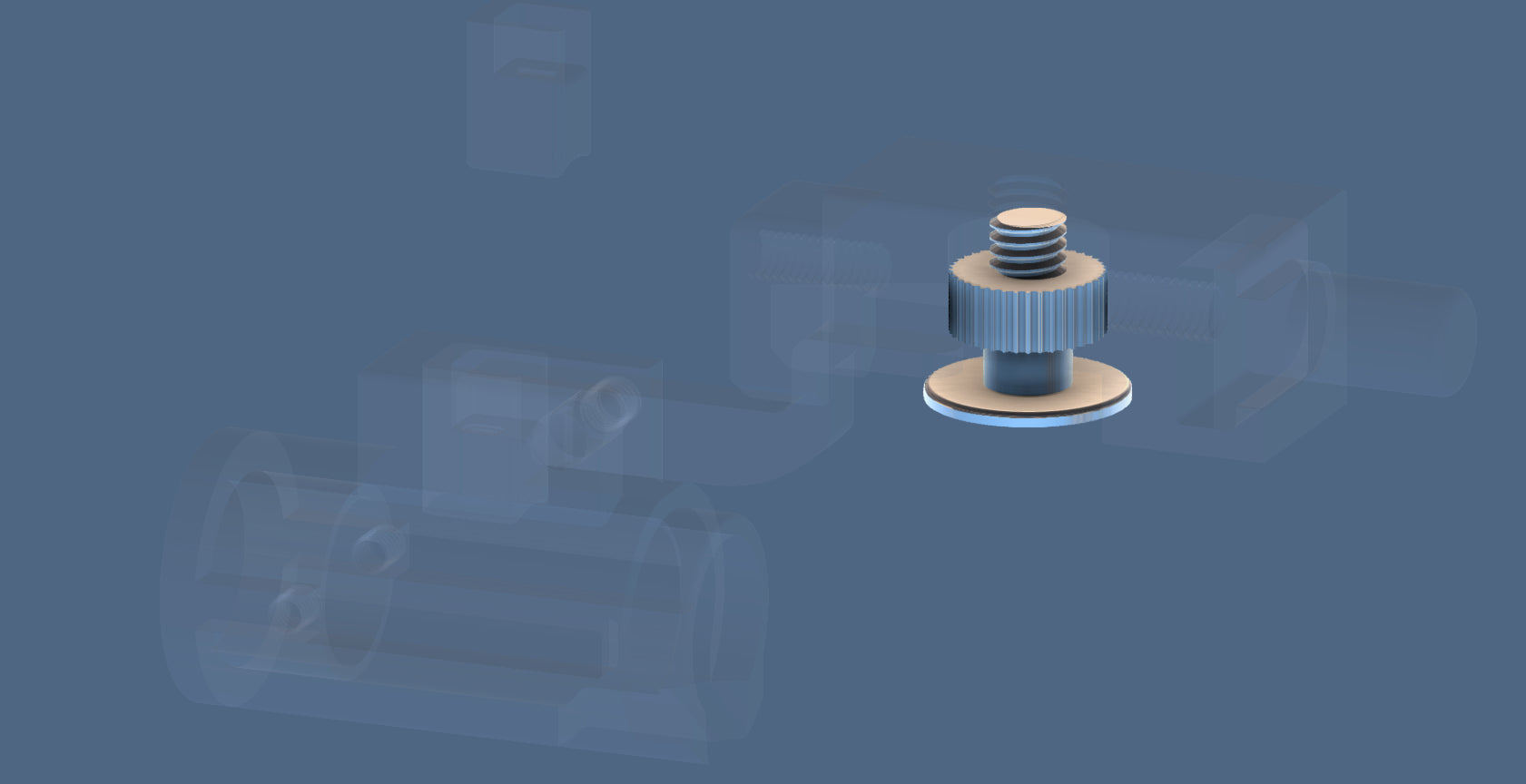

• 1x Ball Bearing Clicker screw for micro-click adjustments on the hop-up wheel

• 1x Aluminum Recoil Stopper

• 1x O-ring for the rear of the Recoil Stopper

Compatibility

• Designed for Tokyo Marui MWS

• Compatible with Salvo Precision MCX MWS Clone

• Compatible with Double Eagle Noveske N4 MWS Clone

• Compatible with EMG / T8 / CYMA Noveske N4 CGS MWS

• May fit other clones

Approximate Nub Usage Chart by BB Weight

• Pink Nub: 0.20 g ~ 0.25 g

• Purple Nub: 0.25 g ~ 0.32 g

• Orange Nub: 0.32 g ~ 0.40 g

• Green Nub: 0.40 g ~ 0.48 g

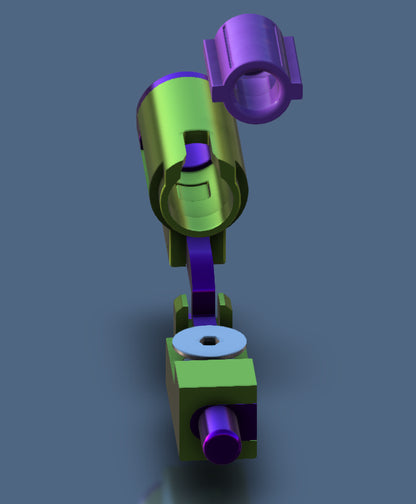

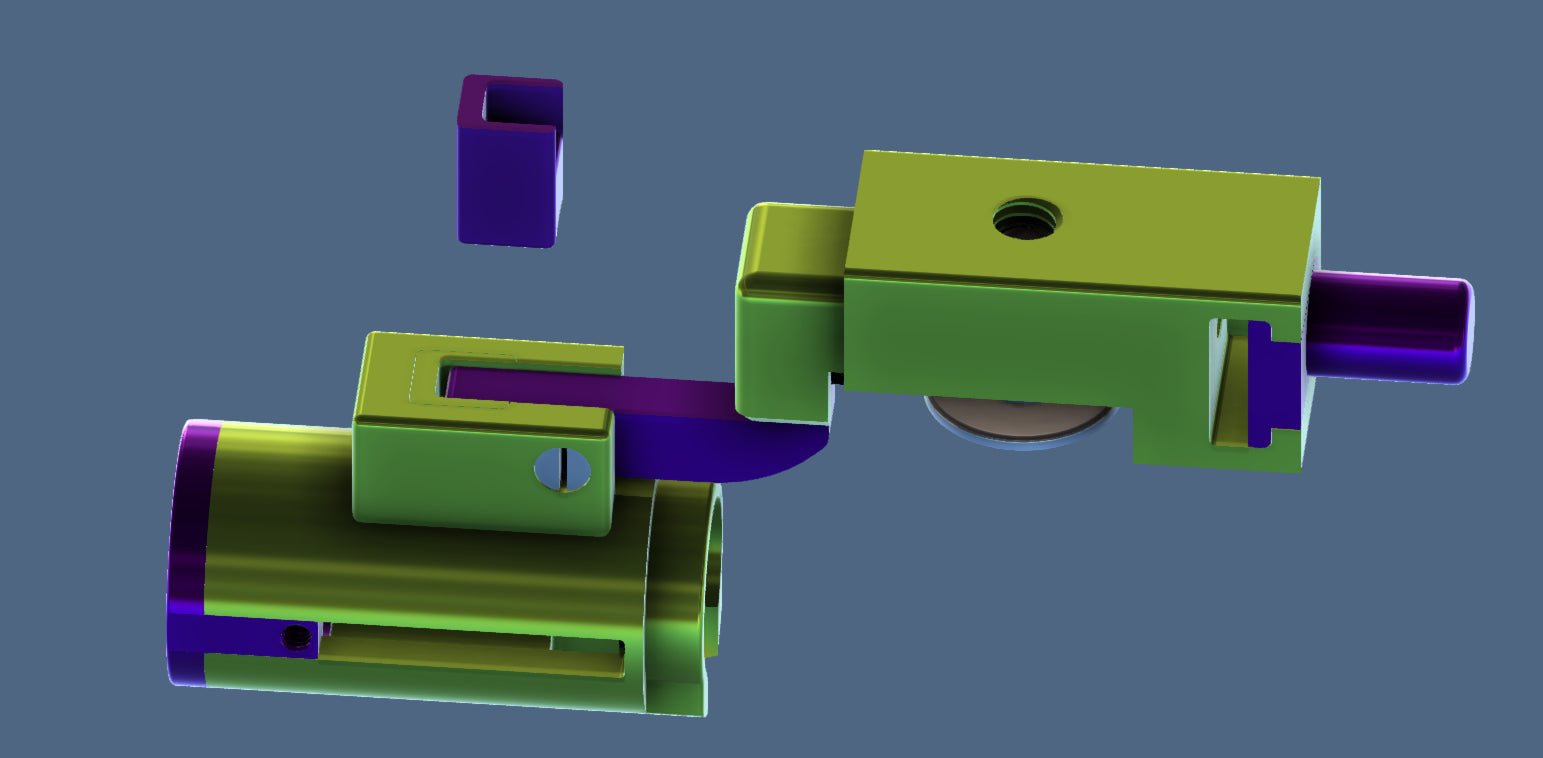

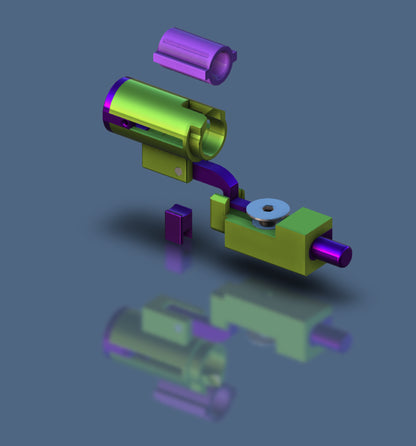

Exploded Views

• Kraken MWS Chamber – View exploded diagram here

• Kraken MWS with optional TDC – View TDC configuration here
