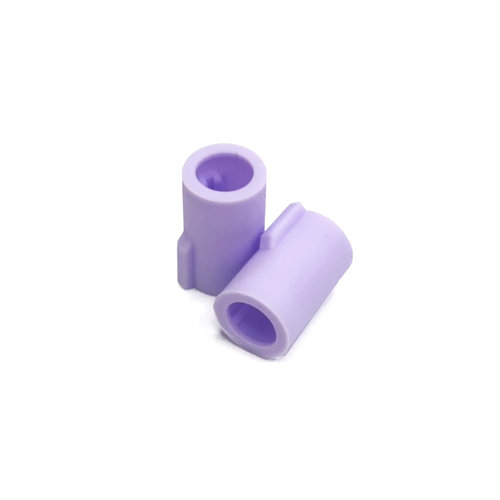

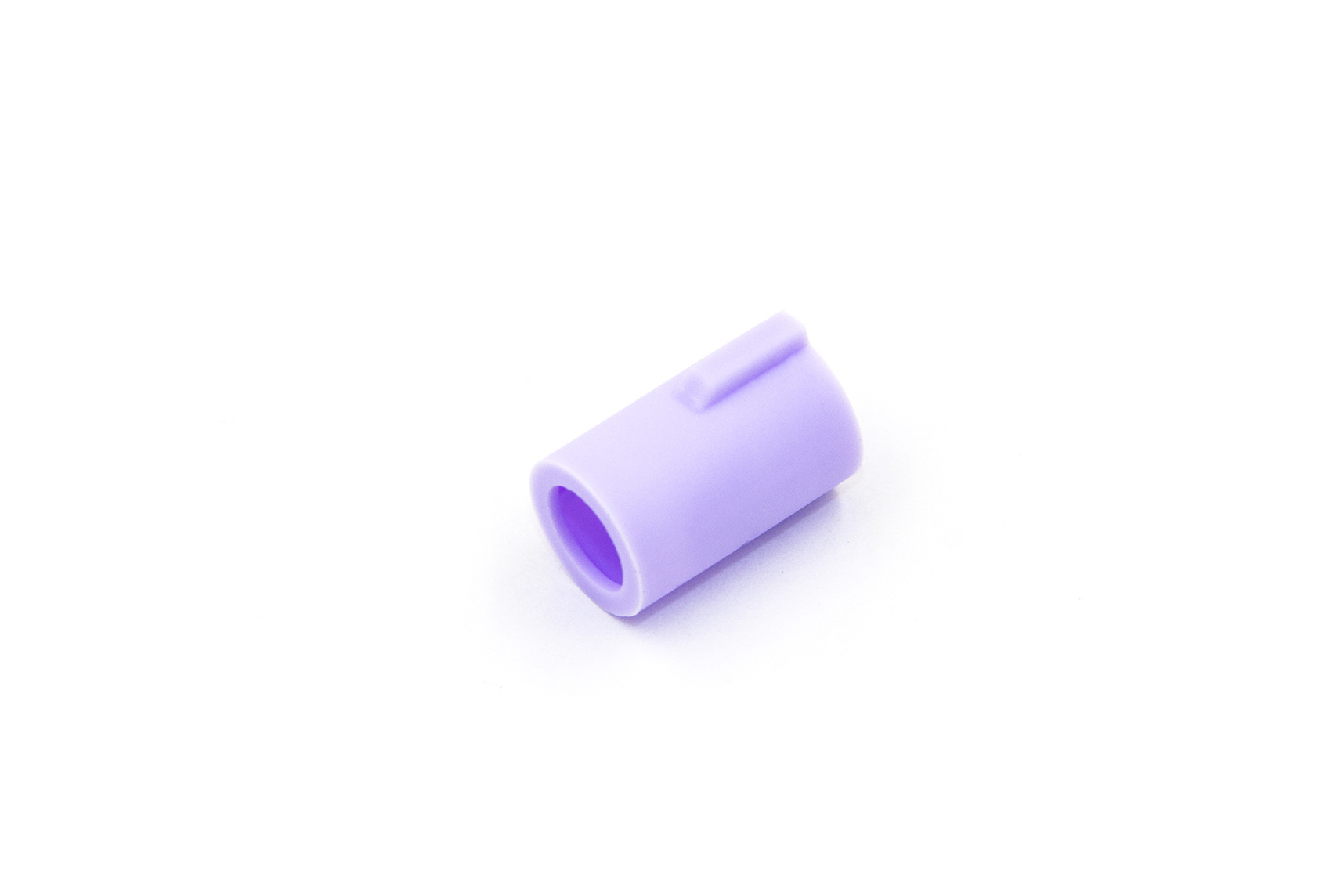

X-Range Hop Up Bucking for GBB/ VSR-10 (55º)

The X-Range design was inspired by the R-hop, with the goal of maximizing contact with BBs when the bucking is depressed. That increases friction to produce top spin as well as air seal inside the barrel to achieve maximum range.

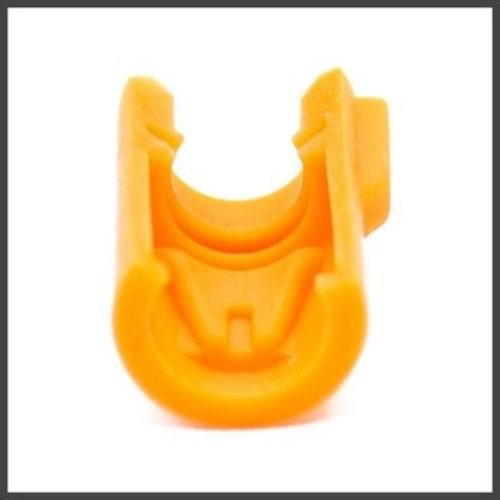

1. The X-Range is bell- or cup-shaped with the wider end facing the loading nozzle.
2. With 2-stage channel, the X-Range’s bell configuration is shallow to deep. BBs are loaded into the shallow, narrow end to move to the mid-section where it is deeper and wider. Such channel configuration assures perfect BB positioning to also produce top spin to result in accurate trajectory. The shallow channel end of the loading nozzle widens when the bucking is depressed, increasing contact, friction with BBs. The bell opening has “wings” on either sides to form a bridge to the inner barrel window, being a solid, wide structure at the inner barrel entry to hold BBs that also prevents the rear section of the depressor from deforming. Friction against BBs drops dramatically when moved by air from the shallow to the deeper channel section, with BBs pushed straight along the channel by air to the bottom of the bell to enter the inner barrel with continuing top spin.
