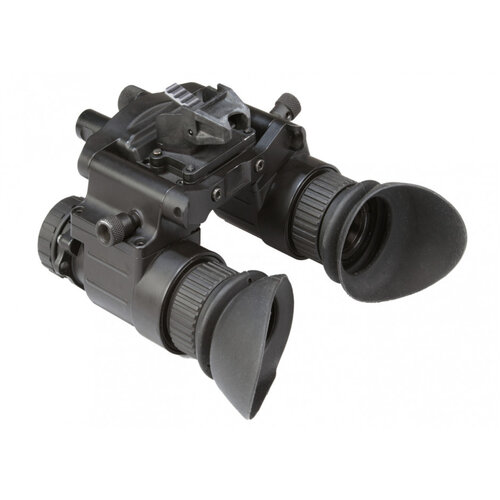

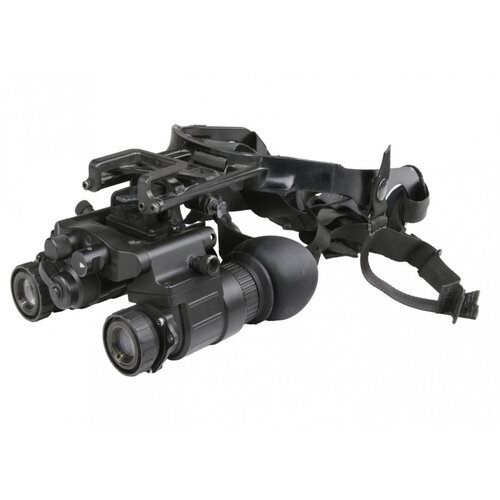

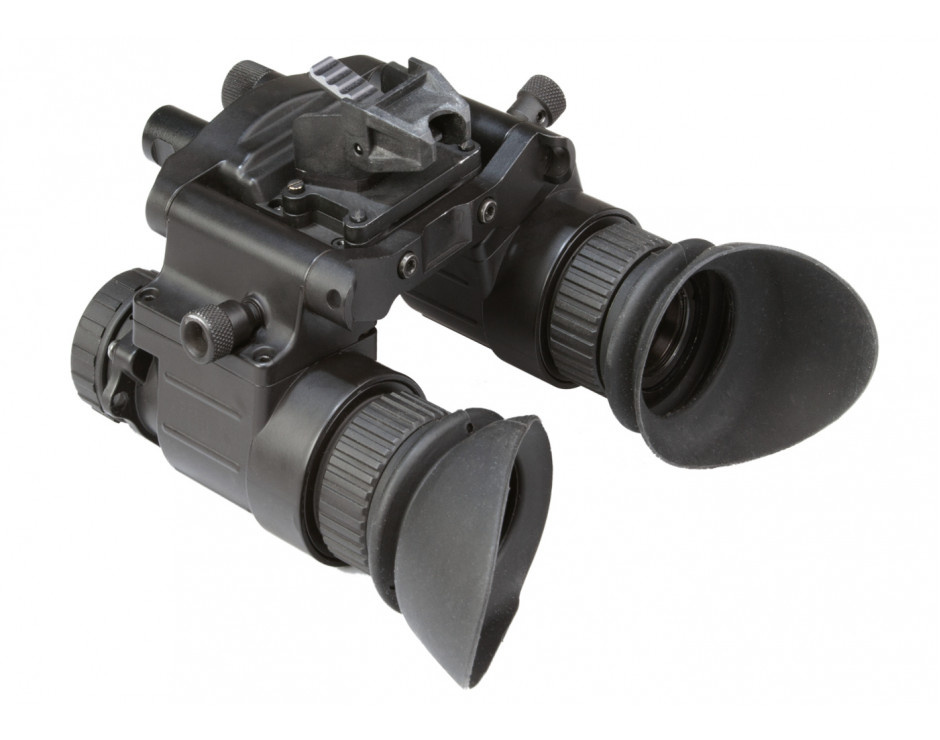

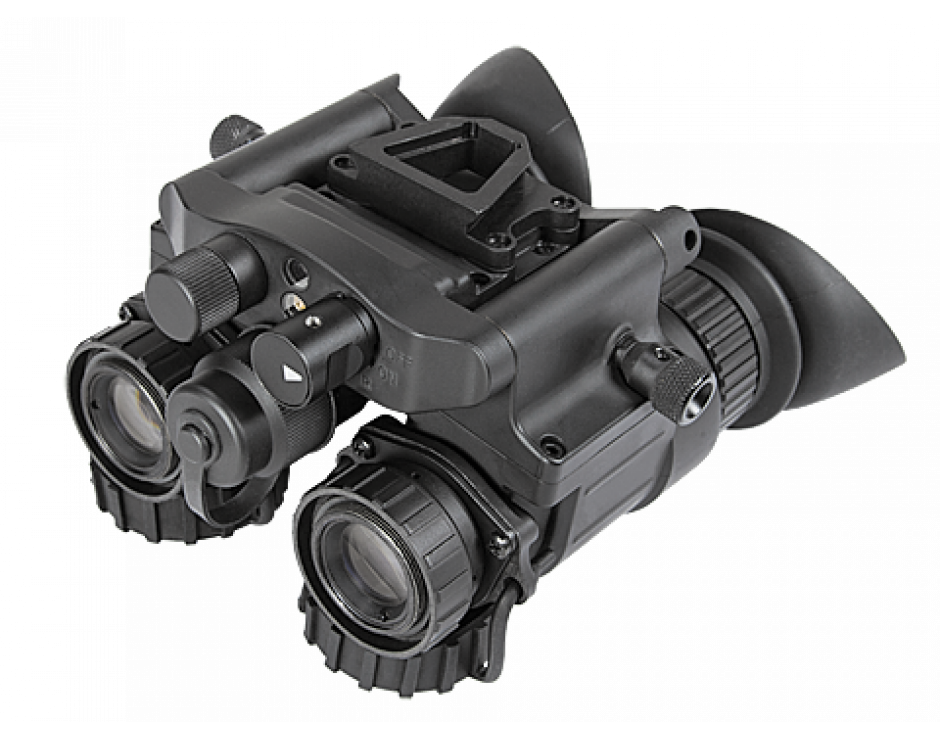

AGM NVG-50 APW – Dual Tube Night Vision Goggle/Binocular 51 degree FOV with Advance Perfermance Auto-Gated Gen 2+ FOM1800 Auto-Gated, P45-White Phosphor IIT.
The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The AGM NVG-50 features best on the consumer market multi-coated optics and is built to last with a lightweight and robust housing. The device is built around Gen 2 commercial grade image intensifier tubes so the very attractive price/performance ratio is here. The bright light cut-off feature ensures that your high-quality electronics is protected. The NVG-40 is also equipped with Manual Gain Control, which adjusts the image brightness, so you can personalize your night vision experience during the most daring adventures. The AGM NVG-50 is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
AGM NVG-50 Overview. Read more at TheFirearmBlog

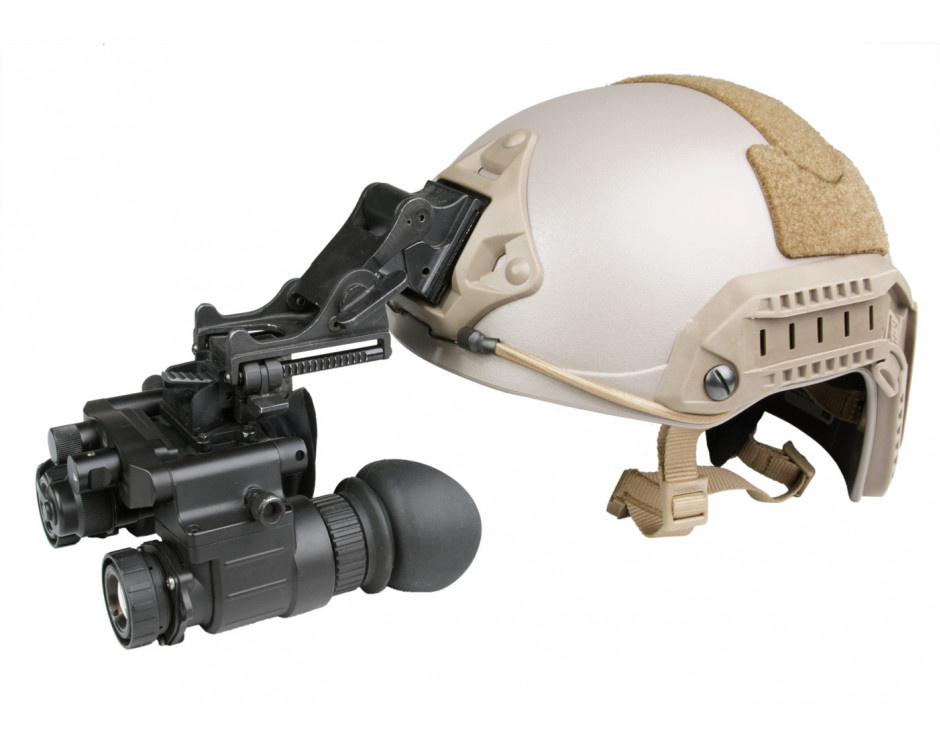

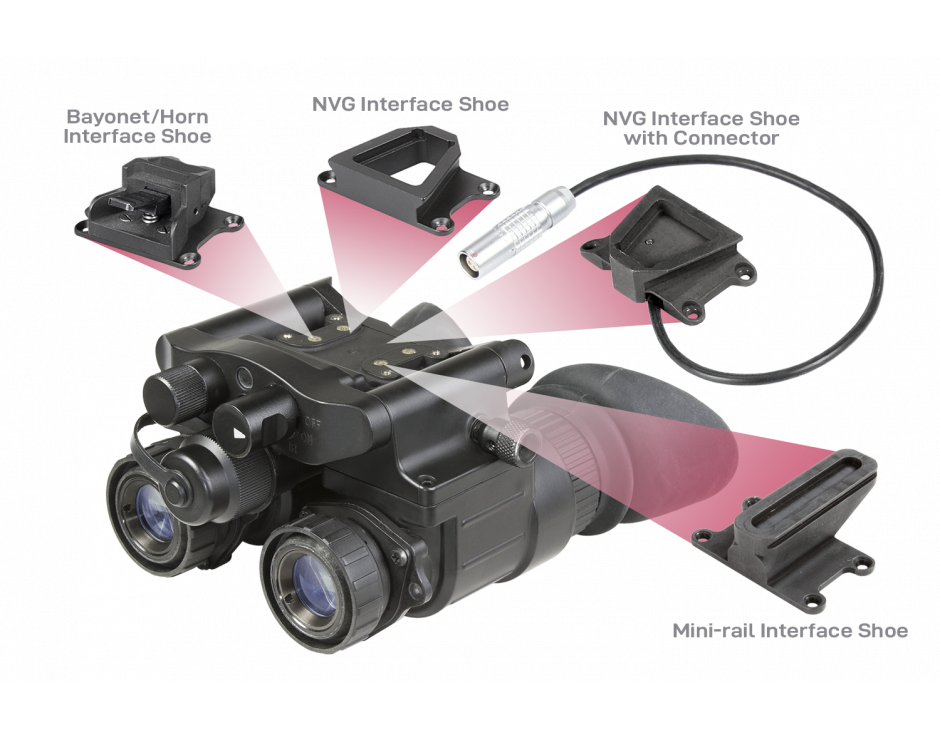

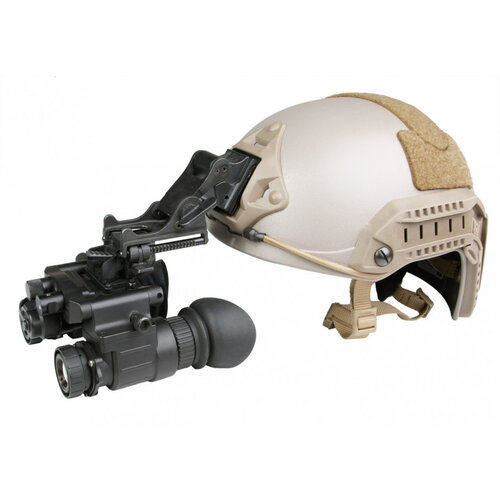

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

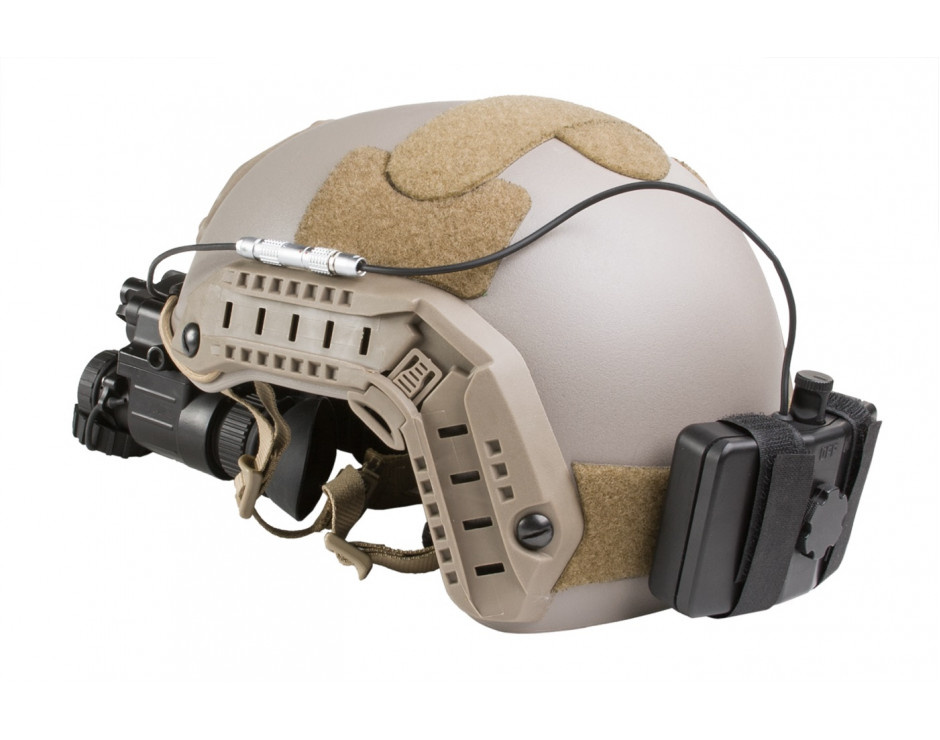

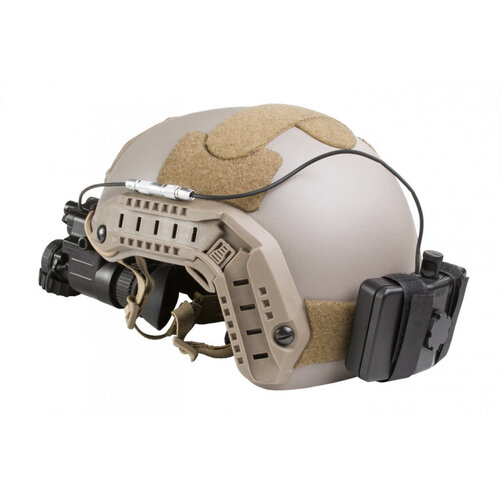

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
|
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Lightweight & compact

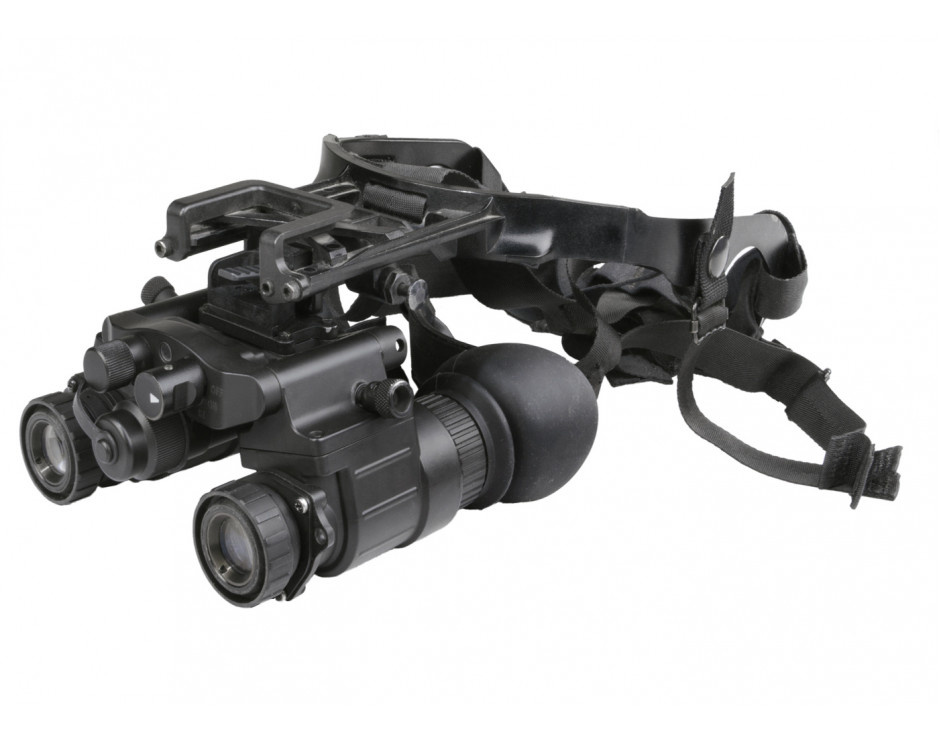

- Head mountable for hands-free operation
- Bright light cut-off
- Manual gain control
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- 3-Year warranty
SPECIFICATIONS
| Image Intensifier Tube | Advance Perfermance Auto-Gated Gen 2+ |
| Cosmetic level of IIT | AP the best quality |
| Resolution | 60-64 lp/mm |
| Visible Spots | Clear FOV |
| AP | manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level. |
| FOM | 1800 |
| Magnification | 1x (3x optional) |
| Lens System | 19 mm; F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to infinity |
| Eye Relief | 17 mm |
| Diopter Adjustment | -6 to +2 dpt |
| Interpupillary Distance | 56 to 72 mm |
| Led Indicators | Low battery; IR on; Excessive light conditions |
| Manual Gain Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes |
| Infrared Illuminator | Yes |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 615 g (1.35 lbs) |
| Overall Dimensions | 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in) |
