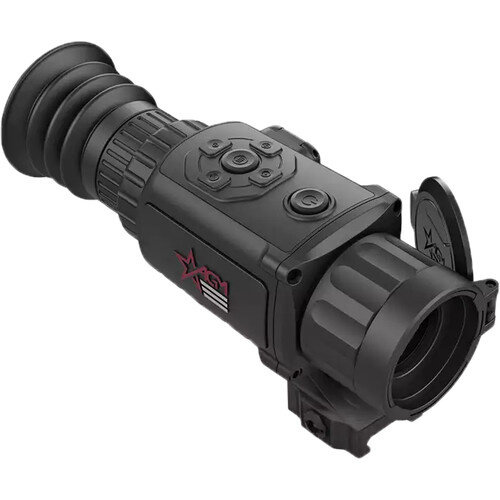

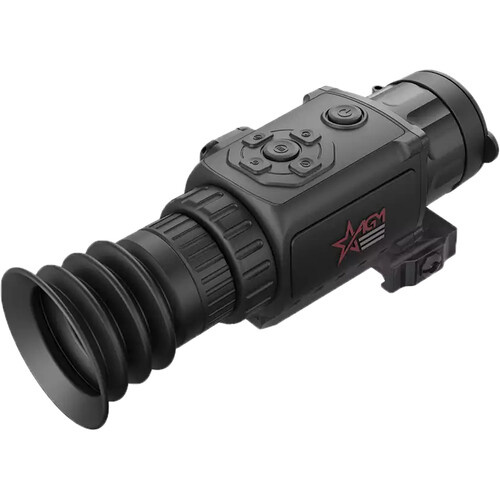

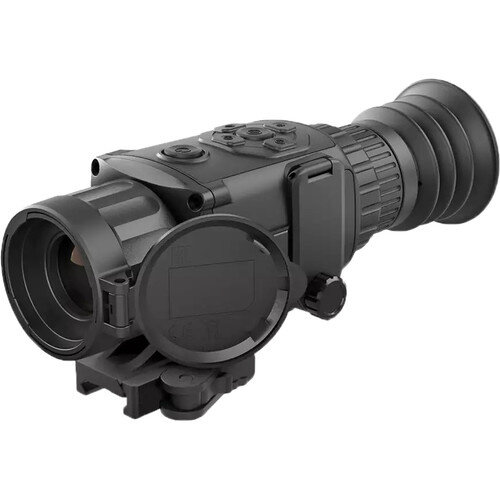

Rattler TS25-384 Thermal Imaging Rifle Scope 384x288 25mm Lens
The Rattler Rattler TS25-384 Thermal Imaging Rifle Scope 384x288 25mm Lens can be used on your GBBR replica(Tokyo Marui MWS, MK18, CQBR, MTR, AK47, GHK...), since it is recoil resistant, as it is designed for real firearms, so you will not have to worry about breaking it like its counterparts, such as the Leupold tracker. More over it CAN RECORD!
The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.
The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc. Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
Specifications:
| Resolution | 384x288 |
| Detector | 17μm, Uncooled, 50Hz Vanadium Oxide Uncooled FPA, NETD less than 35 mk (@25°C), Response Waveband - 8 μm to 14 μm |
| Lens System | 25 mm; F/1.0 |
| Optical Magnification | 1.5x |
| Field of View | 14.9° x 11.2° |
| Digital Zoom | 2x, 4x, 8x, PIP |
| Observation Distance | Max. 882 m |
| Diopter Adjustement | -5 to +3 dpt |
| Eye Relief | 45 mm |
| Display | 0.39-inch, OLED, 1024 × 768 |
| Palettes | WHITE HOT, BLACK HOT , FUSION (the hot part is white-colored. From high temperature to low temperature, the image is colored in from white, yellow, red, pink to purple) RED HOT (the hot part is red-colored in view. The higher the temperature is, the redder the color is) |
| Hot tracking | Yes, enable/disable hot spot mark (marking the spot of highest temperature) |
| Reticles | 5 types, 3 colors, on/off |
| Hotspot and WiFi | Yes |
| Distance Measurement | Yes (Stadiametric range finder) |
| Trajectory correction | 5 Profiles One shot zero correction. |
| Scene Mode | 2 modes Recognition mode improves an image so that the object edge is more distinct. Jungle mode is more suitable for hunting environment because of the highlight function of small objects. |
| Standby mode | Yes |
| Video Recording | Yes |
| Picture Snapshot | Yes |
| DPC (Dead pixel correction) | Yes |
| Uniformity Correction | Auto, Manual, External Correction |
| Storage (memory) | Built-in EMMC (16 GB) |
| Language of the menu | 17 languages (English, Russian, German, Czech, French, Spanish, Danish, Norwegian, Swedish, Finnish, Hungarian, Italian, Polish, Portuguese, Romanian, Slovak, Spanish) |
| Battery Type | Two CR123 |
| Battery Life (Operating, 20°C) | Up to 4.5 hr |
| External Power Supply | 5V USB |
| Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) |
| Degree of Protection | IP67 |
| Shock and Vibration | 750 g/ms |
| Weight | 502 g (1.1 lb) |
| Overall Dimensions | 226 × 62 × 82 mm (8.9 × 2.4 × 3.2 in) |
