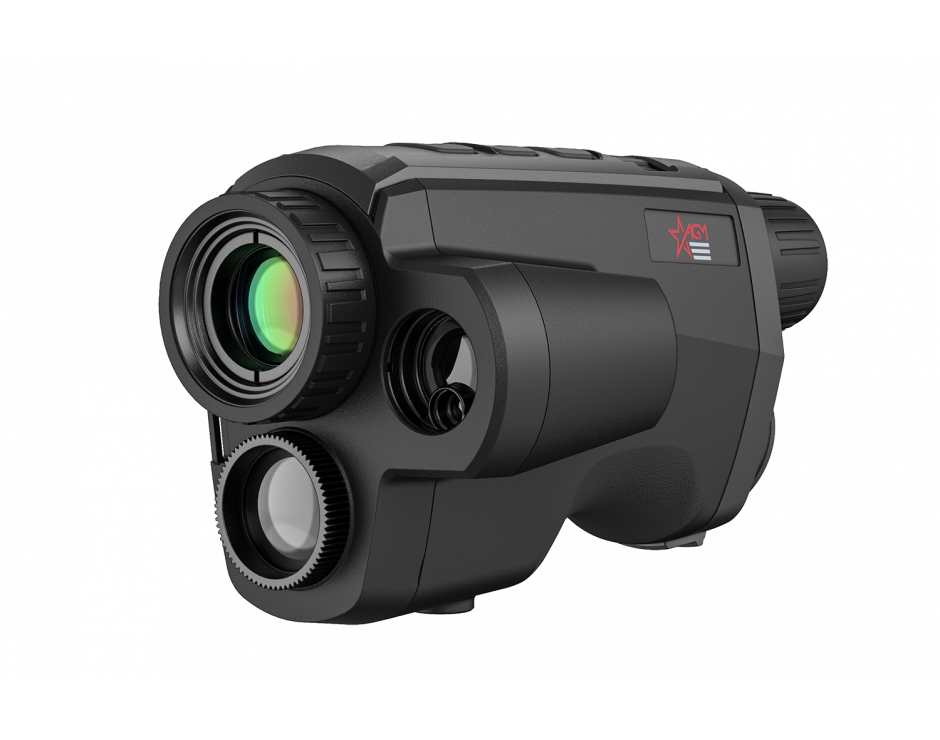

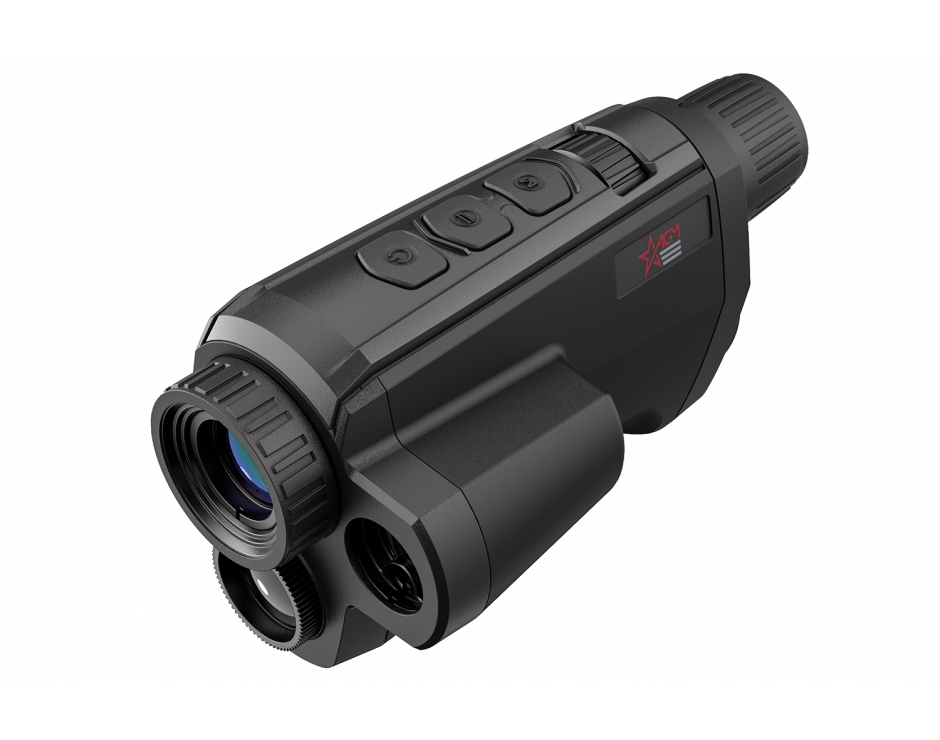

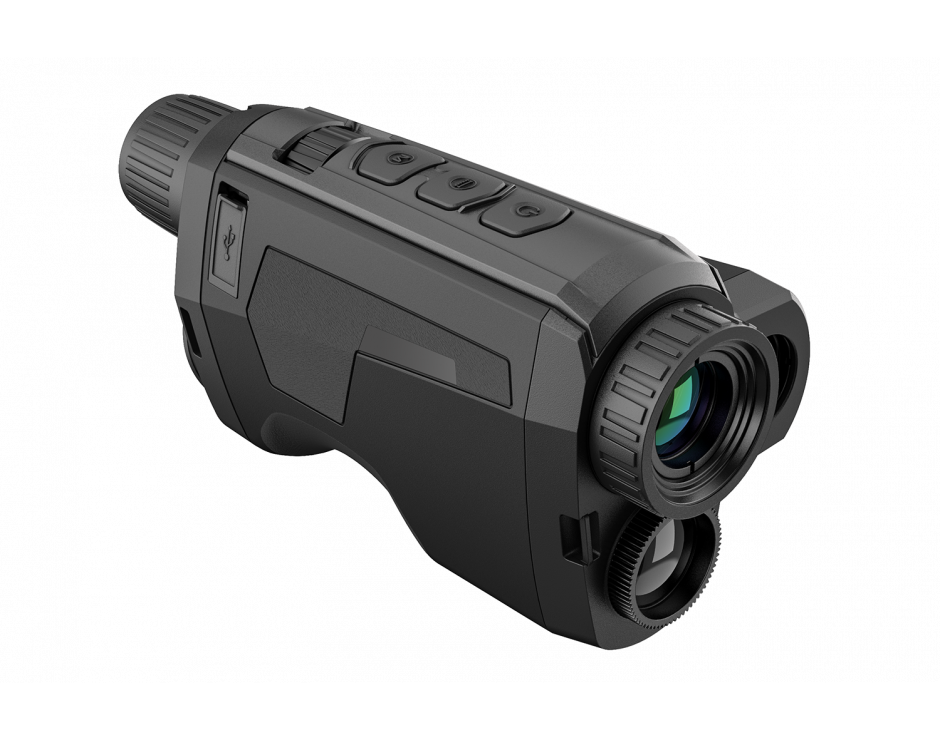

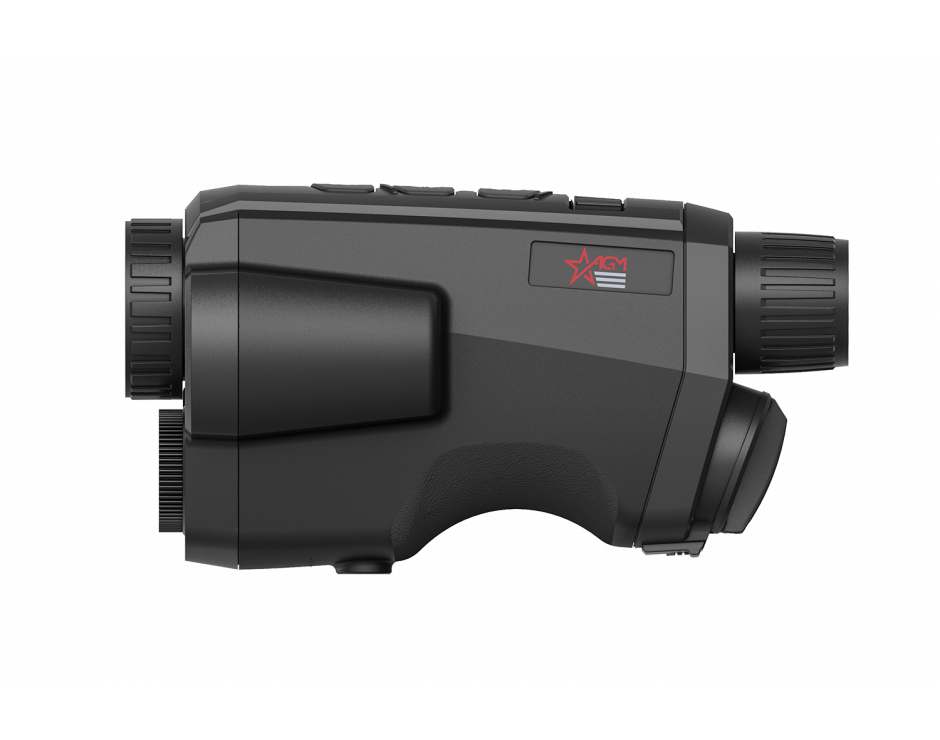

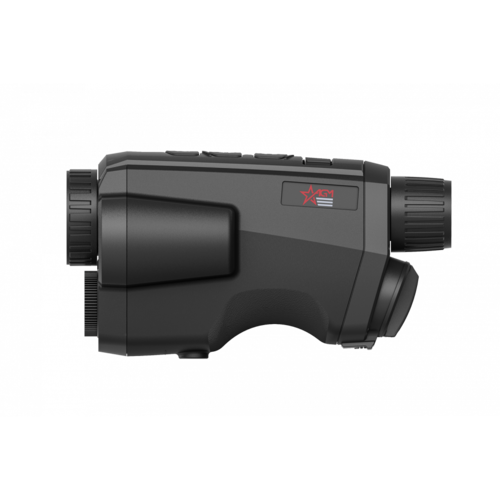

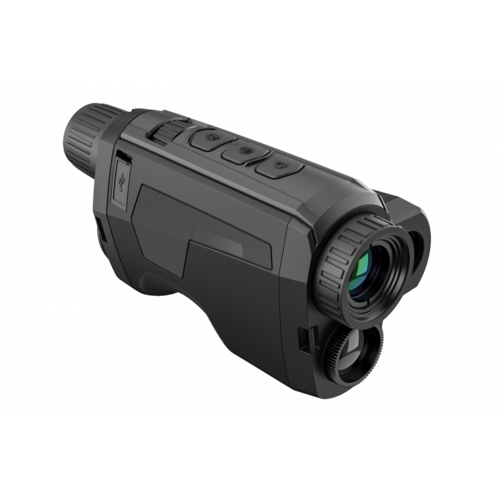

Fuzion LRF TM35-384 – Fusion Thermal Imaging & CMOS Monocular with Laser Range Finder, 12 Micron 384x288 (50 Hz), 35 mm lens
The AGM Fuzion LRF TM35-384 Thermal & Digital Day/Night Vision monocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this monocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron 384x288 thermal detector. This sensor from AGM will ensure human-sized heat signatures detectable at up to 1 mile (1750m). Unlike other thermal monoculars on the market, the Fuzion LRF also come outfitted with a digital night vision channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 600m laser rangefinder simply takes the Fuzion LRF to another level, and this is without even mentioning its 16GB of internal memory and Wi-Fi compatibility.
The Fuzion LRF also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high-sensitivity thermal detector, 35mm Germanium lens with a 1.0 aperture, 1920x1080 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 3.5X base magnification with 8X digital zoom, picture-in-picture mode, built-in laser rangefinder, up to 5 hours of battery life on one removable, rechargeable 18650 battery, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes a long-range IR illuminator, wrist strap, charger, and of course AGM’s 5 Year Transferable Warranty!
- Bi-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- Selection of thermal view channel, visible light channel, or both them combined
- 12 μm, 35 mK NETD high sensitivity thermal detector
- Fast 50Hz imaging
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 1920×1080 Optical resolution
- Eye-safe laser rangefinder
- 1024×768 resolution, 0.39-inch OLED display
- Video recording and snapshot, built-in EMMC (16 GB)
- Wi-Fi hotspot
- Standby mode
- Up to 5 hours continuous running
- Waterproof
- 5-Year Warranty
Specifications
Palettes Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Working Temperature -20°C to 55°C (-4°F to 131°F)
Dimension (LxWxH) 168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)
Distance Measurement Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
Scene Mode Jungle, Recognition
Hotspot Yes
Observation Distance 1750m/yd
Detector type 12 μm VOx Uncooled Focal Plane Arrays
Response Waveband 8 μm to 14 μm
Optical Image Sensor 1/2” Progressive Scan CMOS, 1920×1080@25fps
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate 50 Hz
Aperture F1.0
Resolution 384 × 288
Laser Wavelength 905 nm
Optical magnification 3.5x – 28x
Lens (focal length) Thermal Lens Focal Length - 25mm, Optical Module Lens Focal Length - 22mm
Power 5 VDC/2 A, USB Type-C interface Supports external power supply
Field of view (H × X) 7.5° × 5.7°
Digital zoom 1x, 2x, 4x, 8x
Monitor 1024x768, 0.39 inch, OLED, 50Hz
Storage Built-in 16 GB EMMC
Record Video On-board video recording
Capture Snapshot Yes
Battery Type One 18650 rechargeable battery (removable)
CVBS Output Yes (via USB)
Battery Operating Time Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display Yes
Weight 520 g (1.15 Ib)
Protection Level IP67 (Waterproof)
