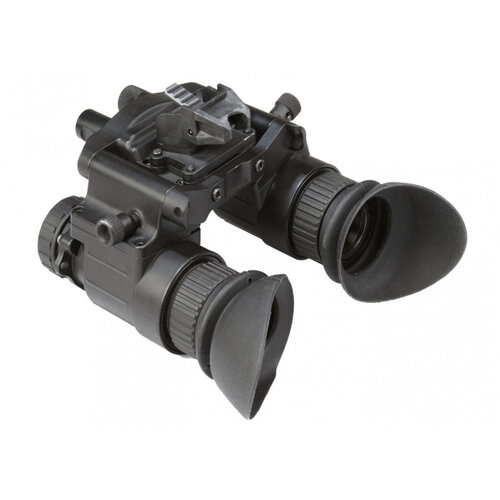

NVG-50 NL1 – Dual Tube Night Vision Goggle/Binocular 51 degree FOV with Gen 2+ "Level 1", P43-Green Phosphor IIT.
NVG-50 NL1 – Dual Tube Night Vision Goggle/Binocular 51 degree FOV with Gen 2+ "Level 1", P43-Green Phosphor IIT.
0 reviews
Add your reviewArticle code 14NV5122483011
€7.673,00
in stock
Delivery in 15-20 days
Description

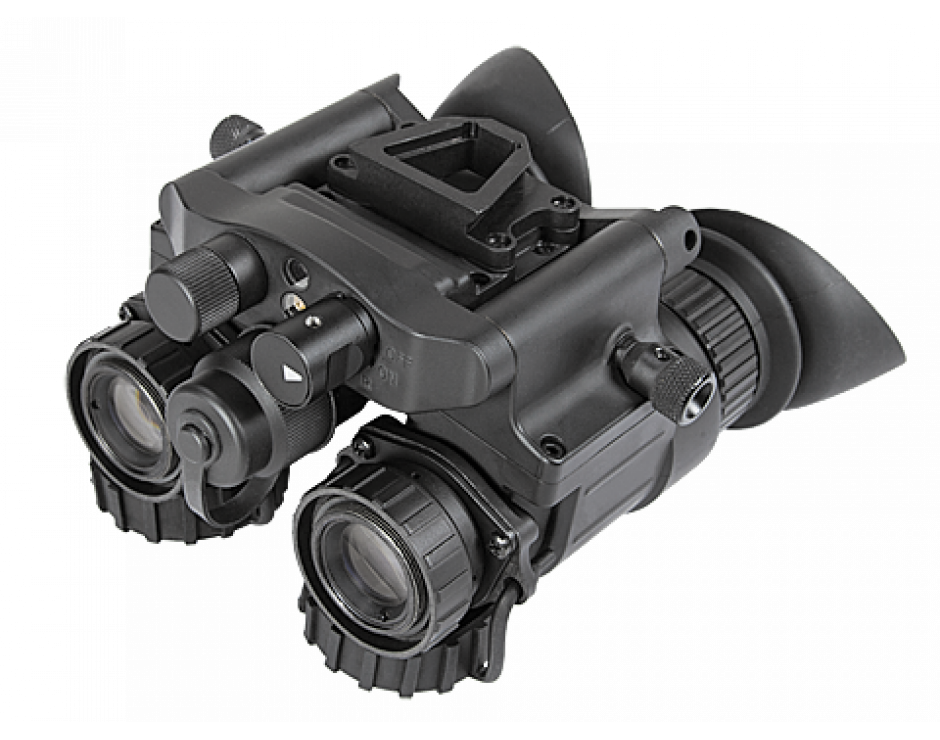

The AGM NVG-50 is a dual-channel night vision system. The NVG-50 uses optics which give it a wider 51° field of view with the tradeoff of shorter eye-relief. The NVG is made of a compact composite housing for durability, and features advanced multi-coated optics. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The bright light cut-off feature ensures that the high-quality photocathode tube is protected. The NVG is also equipped with Manual Gain Control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
AGM NVG-50 Overview. Read more at TheFirearmBlog

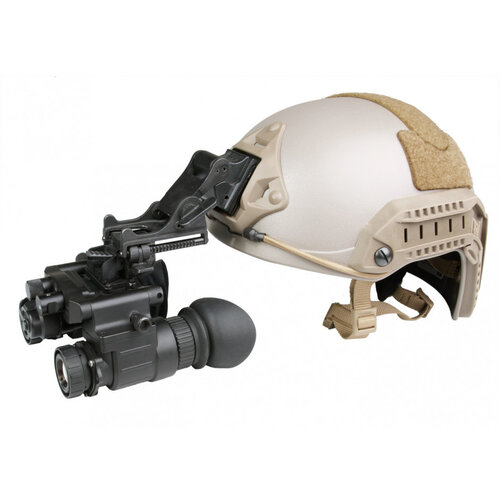

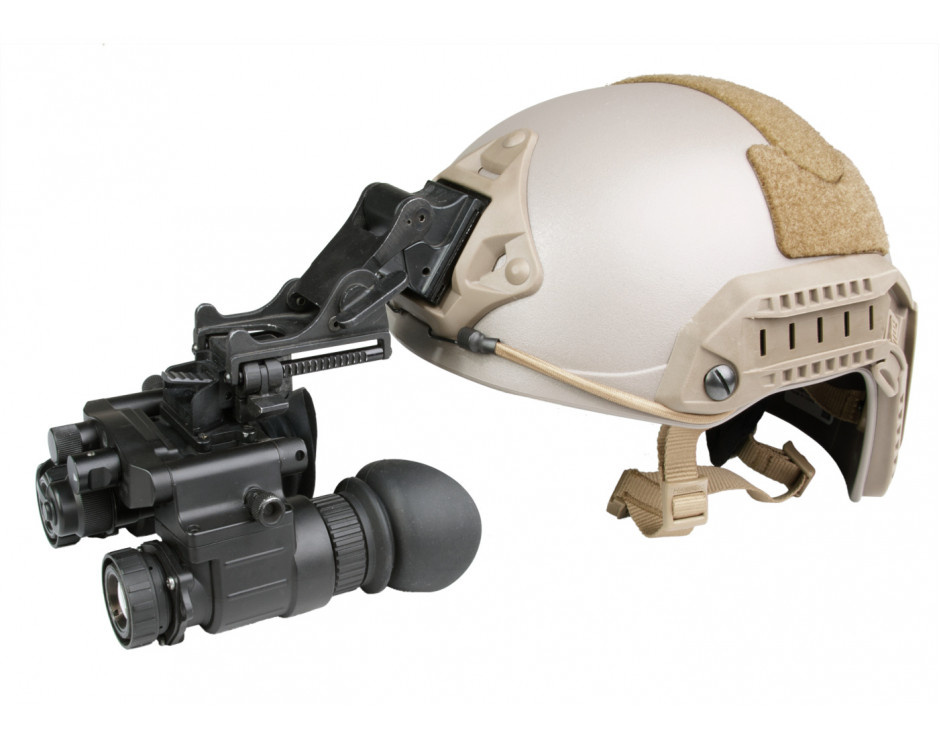

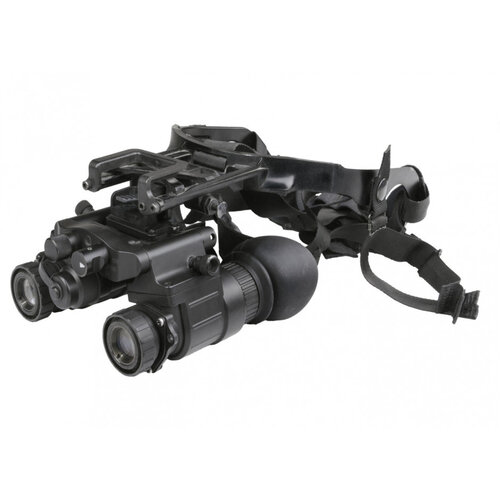

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

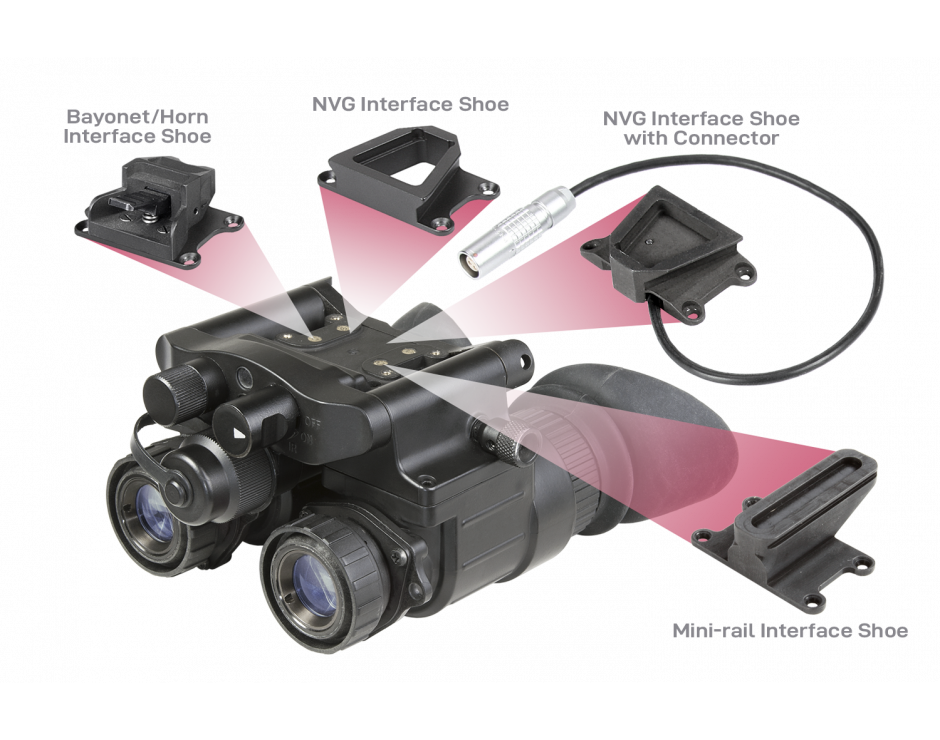

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

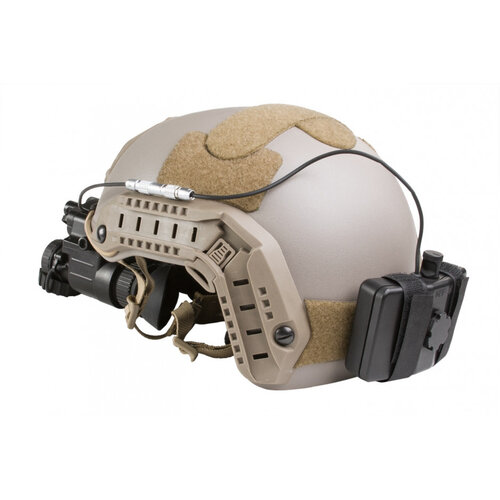

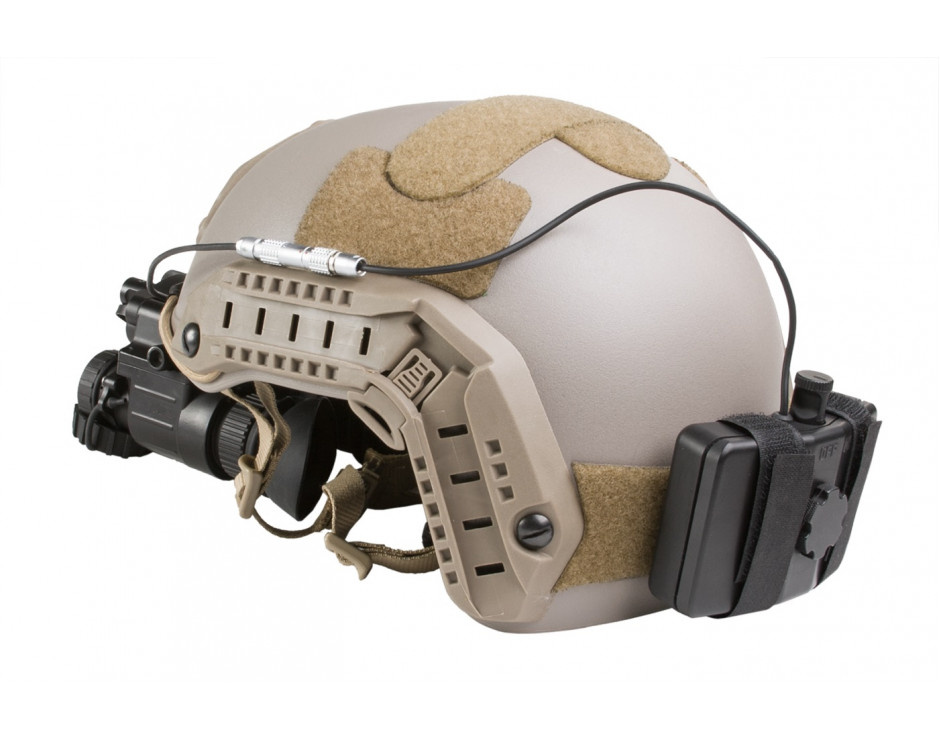

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Lightweight & compact

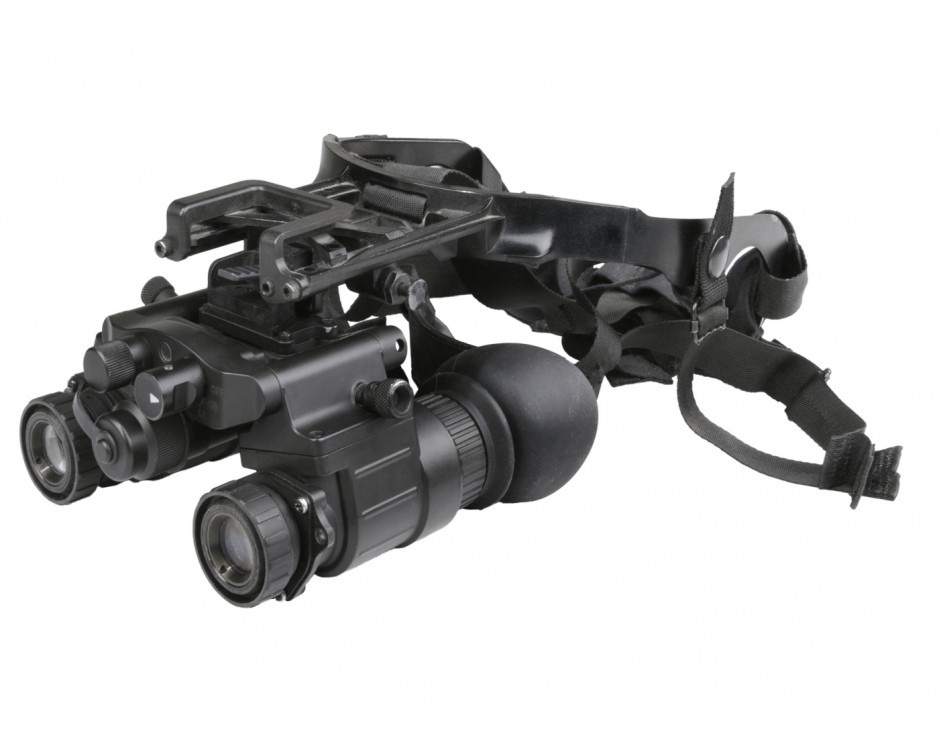

- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- 3-Year warranty
SPECIFICATIONS
- Image Intensifier Tube: Gen 2+ "Level 1"
- Resolution: 51-64 lp/mm
- Field of view cleanness by zone: NL1 Gen 2 IIT offered by AGM. There are practically no visible spots in Zone 1.
- Magnification: 1x (3x optional)
- Lens System: 19 mm; F/1.26
- FOV: 51°
- Focus Range: 0.25 m to infinity
- Eye Relief:17 mm
- Diopter Adjustment: -6 to +2 dpt
- Led Indicators: Low battery; IR on; Excessive light conditions
- Infrared Illuminator: Yes
- Manual Gain Control: Yes
- Bright Light Cut-Off: Yes
- Automatic Shut-Off System: Yes
- Battery Type: One CR123A (3V) or AA (1.5 V)
- Battery Life (Operating): Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
- Operating Temperature Range: -40°C to +50°C (-40°F to +122°F)
- Storage Temperature Range: -50°C to +50°C (-58°F to +122°F)
- Weight: 615 g (1.35 lbs)
- Overall Dimensions: 112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)
