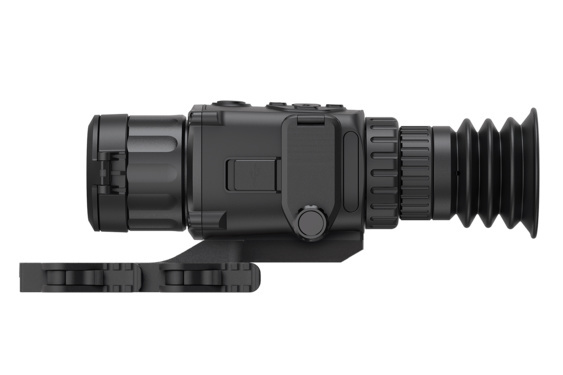

Rattler TS50-640 Thermal Imaging Rifle Scope 12 Micron 640x512 50mm Lens
The Rattler TS50-640 Thermal Imaging Rifle Scope 12 Micron 640x512 50mm Lens can be used on your GBBR replica(Tokyo Marui MWS, MK18, CQBR, MTR, AK47, GHK...), since it is recoil resistant, as it is designed for real firearms, so you will not have to worry about breaking it like its counterparts, such as the Leupold tracker. More over it CAN RECORD!
AGM Rattler TS50-640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 50 mm Germanium lens and 20x digital zoom is perfect unit for long range shooting.
Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS50-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
Specifications:
| Resolution | 640 × 512 |
| Detector | 12μm, Uncooled, 50 Hz |
| Lens System | 50 mm; F/1.0 |
| Magnification | 2.5× - 20× |
| Diopter Adjustment | -5 to +3 dpt |
| Field of View | 8.8° × 7.0° |
| Digital Zoom | 1×, 2×, 4×, 8× |
| Observation Distance | 2,500 m |
| Eye Relief | 45 mm |
| Display | 0.39-inch, OLED, 1024×768, 50 Hz |
| Reticle | 5 types, 4 colors, on/off |
| Boresight Adjustment | Digital Controlled |
| Boresight Increment | 0.21 mil / 0.73 MOA |
| Distance Measurement | Yes (Stadiametric Rangefinder |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Scene Mode | Jungle, Recognition |
| Picture In Picture Mode (PIP) | Yes (2× Zoom) |
| Hotspot | Yes |
| Standby Mode | Yes |
| Video Recording | Yes |
| Picture Snapshot | Yes |
| CVBS Output | Yes (via USB) |
| Defective Pixels Correction (DPC) | Yes |
| Uniformity Correction | Auto, Manual, External Correction |
| Storage | Built-in EMMC (16 GB) |
| Battery Type | Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries |
| Battery Life (Operating, 20°C) | Up to 4.5 hr |
| External Power Supply | 5 VDC/2 A, USB Type-C interface |
| Operating Temperature Range | -20°C to +55°C (-4°F to +131°F) |
| Degree of Protection | IP67 |
| Drop Test Height | 1.5m (4.9 feet) |
| Weight (w/o battery) | 487 g ( 1.07 lb) |
| Overall Dimensions | 200 × 78 × 66 mm (7.9 × 3.1 × 2.6 in) |
| Package Includes | Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual |
