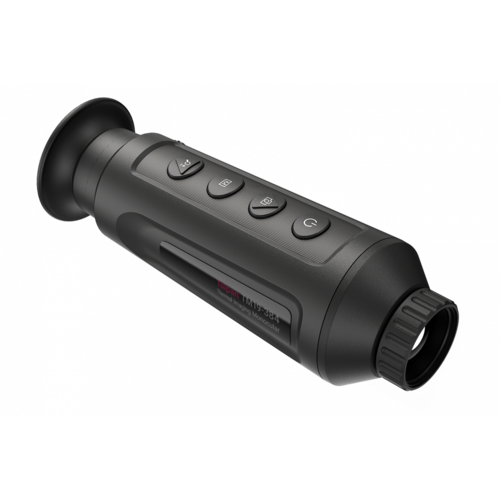

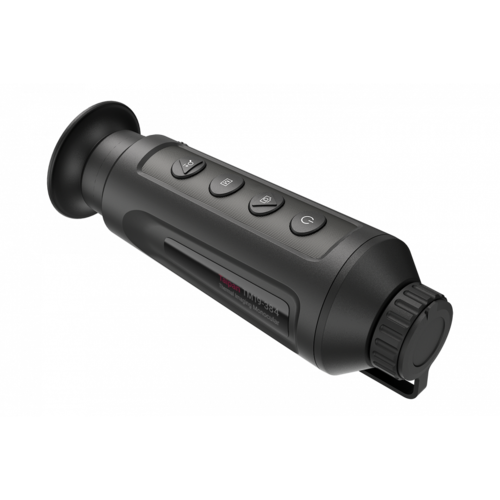

Taipan TM19-384 – Thermal Imaging Monocular 12 Micron 384x288 (50 Hz)
The AGM Taipan thermal monoculars have become synonymous with two words: Reliability and Simplicity. The Taipan TM19-384 is a great mid-level thermal monocular for anyone wanting to experience the capabilities of thermal imaging. Equipped with a highly advanced 12 micron 384x288 resolution thermal sensor and a 1280x960 LCOS display, it’s a great tool for hunters, campers and general outdoors enthusiasts who want or need to detect the presence of other animals or people in complete darkness. The range of uses include blood-tracking for hunters which aids in game retrieval, enhancing safety and awareness for hikers and camp sites and general nighttime curiosity. The Taipan TM19-384 still comes equipped with many of the most popular software features that experienced thermal users have come desire: up to 7.5 hours of battery life from an internal rechargeable battery, Wi-Fi hotspot, AGM Connect app compatibility for exporting and sharing images and videos, 2-16X magnification, 8GB of internal storage with no need for a memory card and a 5 Year Transferable Warranty.
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
- 384×288 resolution, 12 μm, high sensitivity detector/
- Adaptive AGC, DDE, 3D DNR
- 1280 × 960 resolution 0.4-inch LCOS display
- Built-in rechargeable Lithium battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- 5-Year warranty
SPECIFICATIONS
Interface USB Type-C
Pixel Interval 12 μm
Multi Language menu Yes
Drop Test Height 1.5 m (4.9 feet)
Magnification 2x - 16x
Detector type Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband 8μm to 14μm
FFC (Flat Field Correction) Auto, Manual, External Correction
Highest Temperature Spot Tracking Yes
Standby Mode Yes
Refresh rate Sensor / OLED 50 Hz
Aperture F1.0
Resolution 384×288
Detection Range (6' object) 900m/yd
NETD Less than 35 mk (@25°C), F#=1.0
Lens (focal length) 19 mm
Power 5 VDC/2 A, 1.5 W
Field of view (H × X) 13.8° × 10.4° (H × V)
Digital zoom 2×, 4×, 8×
Monitor 1280×960, 0.4 inch, LCOS
Imaging palettes Black Hot, White Hot, Red Hot, Fusion
Storage Built-in memory module (8 GB)
Record Video On-board video recording
Capture Snapshot Yes
Battery Type Built-in rechargeable Lithium battery
Wi-Fi Yes
CVBS Output Yes (via USB)
Battery Operating Time More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display Yes
Weight 310 g (0.68 lb)
Working Temperature/ Humidity -20°C to 55°C (-4°F to 131°F)
Overall Dimensions 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)
Protection Level IP67
